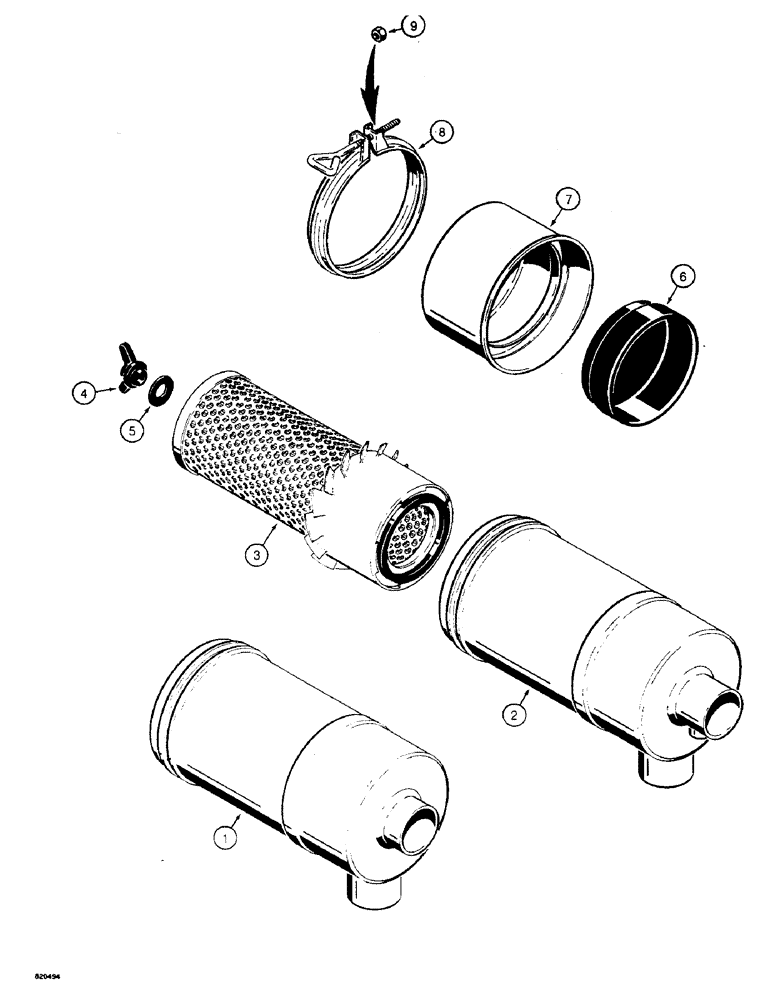

Запчасти Case W4 (020) - D55203 AIR CLEANER (02) - ENGINE

H668939

AIR CLEANER

ASSEMBLY - engine, Includes: Refs. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner, does not use restriction indicator, service with Ref. 2 and A59569 restriction indicator

1шт.

If air cleaner does not have an air restriction indicator (Ref. 3, Figures 16 and 18), it will be necessary to order the A59569 indicator with this housing.

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

If air cleaner does not have an air restriction indicator (Ref. 3, Figures 16 and 18), it will be necessary to order the A59569 indicator with this housing.

1шт.

3

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

D78354

WING NUT

NUT ASSEMBLY - element, Includes: Refs. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - wing

1шт.

5

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- nut

1шт.

6

D48200

BAFFLE

- rubber

1шт.

7

D48201

CUP

DUST CUP - access, air cleaner

1шт.

8

D48199

CLAMP

ASSEMBLY - cup, Includes: Ref. 9

1шт.

9

25-224

SQUARE NUT,Sq, 1/4"-20

- hex, 1/4" - 20 NC, can be used to replace cage nut

1шт.
