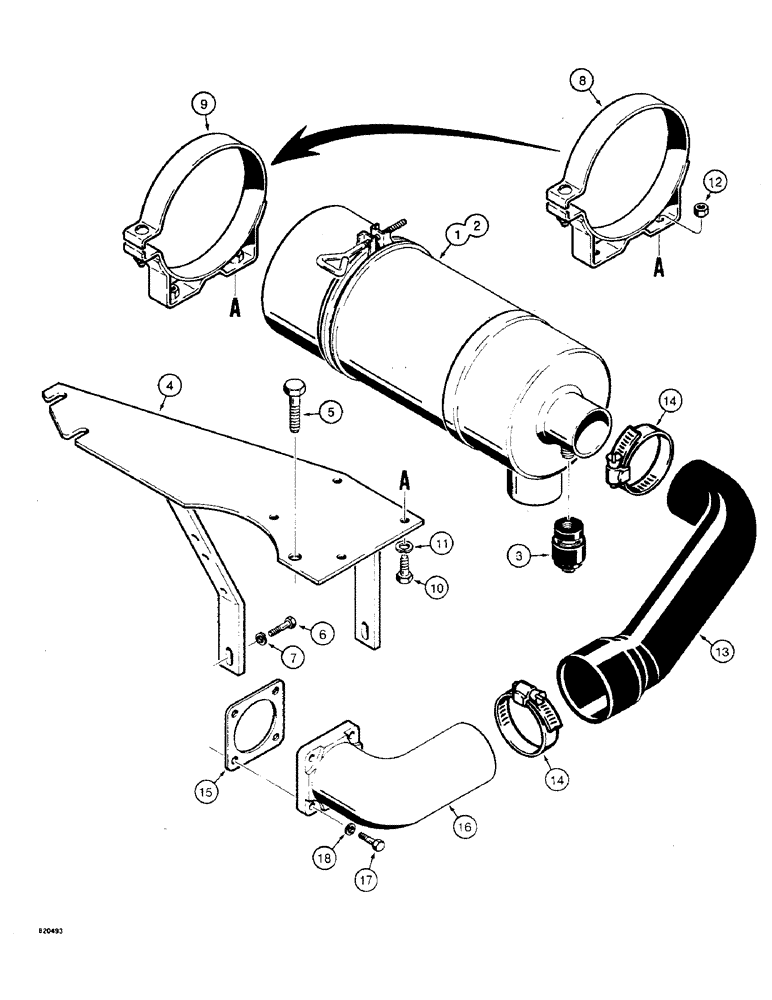

Запчасти Case W4 (018) - AIR CLEANER AND AIR INTAKE PARTS, FOR 2.1 LITRE ENGINE, USED ON TRACTOR SN 1205397, 1205402 & AFTER (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

AIR CLEANER - engine, does not use Ref. 3, service with Ref. 2 (D55203) and Ref. 3, parts list Figure 20

1шт.

2

D55203

CLEANER ASSY.

AIR CLEANER - engine, uses Ref. 3, parts list Figure 20

1шт.

Replaced by H668939.

1шт.

3

A59569

INDICATOR

- air cleaner restriction, use with Ref. 2 only

1шт.

4

H658716

SUPPORT - air cleaner

1шт.

5

H410084

BOLT

- special, support to engine cylinder head

1шт.

6

813-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex head, 10 MM - 1.5 x 35 MM (8.8), support to engine flywheel cover

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

NSS

NOT SOLD SEPARAT

BAND - air cleaner mounting, uses Refs. 10 and 12 only, if used

2шт.

9

R41654

COLLAR CLAMP

BAND - air cleaner mounting, uses Refs. 10 and 11 only, if used

2шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used with Ref. 9 only 5/16"

4шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, used with Ref. 8 only

4шт.

13

H413690

HOSE - air, Serial Range: cleaner-manifold

1шт.

14

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

15

H410910

GASKET

- intake tube

1шт.

16

H410860

MANIFOLD

TUBE - intake

1шт.

17

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex head, 6 MM - 1.0 x 20 MM (8.8)

4шт.

18

892-1106

LOCK WASHER,M6

4шт.
