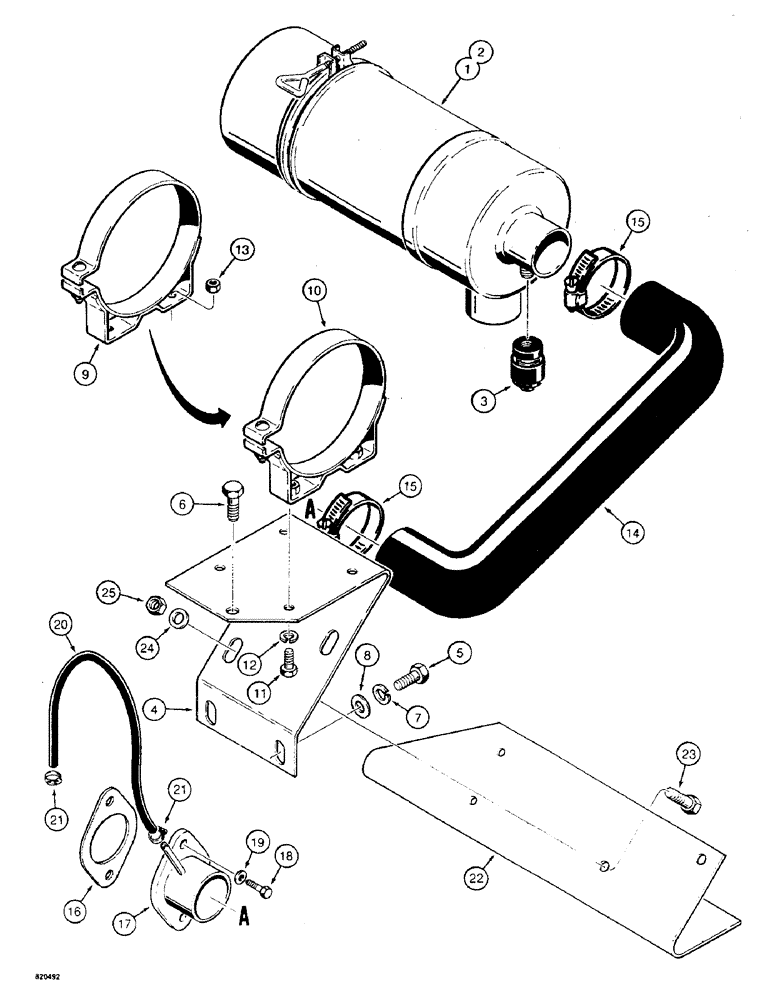

Запчасти Case W4 (016) - AIR CLEANER & AIR INTAKE PARTS, FOR 1.8 LITRE ENGINE, USED BEFORE TRAC. SN 1205402 EXCEPT SN 1205397 (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

AIR CLEANER - engine, does not use Ref. 3, service with Ref. 2 (D55203) and Ref. 3, parts list Figure 20

1шт.

2

D55203

CLEANER ASSY.

AIR CLEANER - engine

1шт.

Replaced by H668939.

1шт.

3

A59569

INDICATOR

- air cleaner restriction, use with Ref. 2 only

1шт.

4

H336008

SUPPORT - air cleaner

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Support to engine, front side

2шт.

6

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 1-1/8", support to engine, top

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

9

NSS

NOT SOLD SEPARAT

BAND - air cleaner mounting, uses Ref. 11 & 13 only, if used

2шт.

10

R41654

COLLAR CLAMP

BAND - air cleaner mounting, uses Ref. 11 and 12 only, if used

2шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used with Ref. 10 only 5/16"

4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, used with Ref. 9 only

4шт.

14

H336917

INTAKE AIR HOSE,2.00" ID x 12.38", SAE J200 CA 710

- Air cleaner to manifold 2.00" ID x 12.38", SAE J200 CA 710

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

16

H353334

GASKET

- intake tube

1шт.

17

H628081

AIR INTAKE TUBE,1.68" L

TUBE - intake

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

195-520

WASHER,1/4"

- flat, 5/16"

2шт.

20

L22075

A/C HOSE,0.50" ID x 14.70", SAE 30R Type I

HOSE - Vent, Intake to engine 0.50" ID x 14.70", SAE 30R Type I

1шт.

Replaced by E36631.

1шт.

21

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- vent hose #4, 0.25/0.62 Type F Worm

2шт.

22

H358598

BRACKET - oil filter mounting

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.
