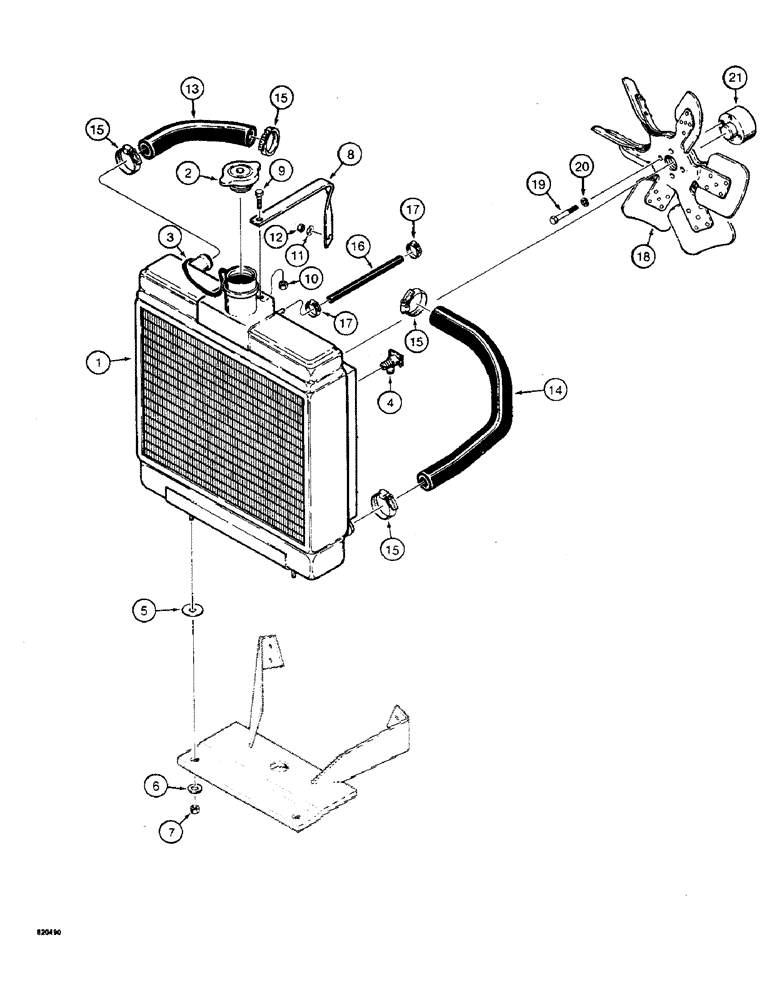

Запчасти Case W4 (012) - RADIATOR, FAN, AND MOUNTING PARTS, FOR 1.8 L ENGINE USED BEFORE TRACTOR SN 1205402 EXCEPT SN 1205397 (02) - ENGINE

1

H336719

RADIATOR

- 1.8 litre engine, Includes: Ref. 2 & 3

1шт.

2

D25826

CAP

- radiator, 7 PSI

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - radiator overflow, buy locally

1шт.

4

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

5

H358747

WASHER

- flat, special

2шт.

6

D41740

WASHER

- flat, special, 3/8"

2шт.

7

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

8

H336230

SUPPORT - upper, Serial Range: radiator-engine

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Upper support to radiator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

11

195-521

WASHER,5/16", SAE

- flat, 11/32", upper support to engine exhaust manifold

1шт.

12

E36668

NUT

- hex, special, upper support to engine exhaust manifold

1шт.

13

H336065

RADIATOR HOSE,1.12" ID x 5.80", SAE 20R4 CLASS SC

1.12" mm ID X 5.80", SAE 20R4 CLASS SC, Upper

1шт.

14

H336073

RADIATOR HOSE,1.25" ID x 9.10" , SAE 20R4

1.25" ID x 9.10", SAE 20R4, Lower 1.25" ID x 9.10" , SAE 20R4

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP

4шт.

16

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Upper Radiator, Small 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

18

H406785

FAN

- pusher

1шт.

19

114-10

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

- hex head, 1/4" - 28 NF x 2-1/4"

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

H336941

SPACER - fan

1шт.
