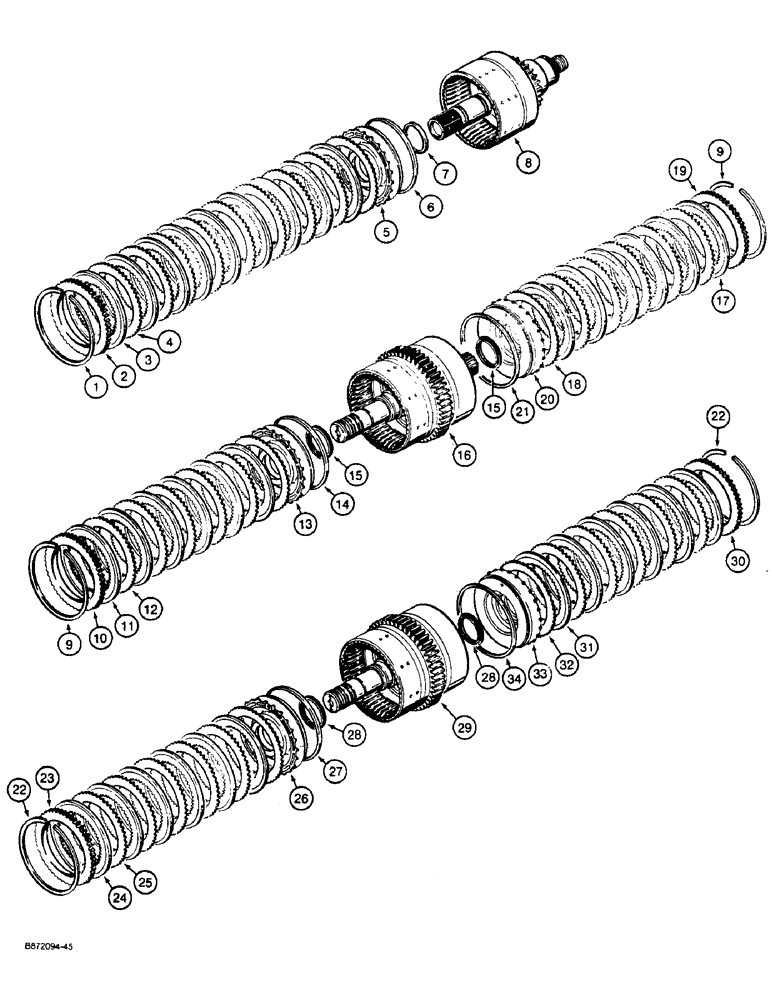

Запчасти Case W36 (6-188) - TRANSMISSION ASSEMBLY, CLUTCHES (06) - POWER TRAIN

1

A17918

RING

SNAP RING - clutch plate, first

1шт.

2

A17919

PLATE

- end, first clutch

1шт.

3

S94326

DISC

- internal spline, first clutch

9шт.

4

A17921

DISC

- external spline, first clutch

9шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - clutch, first, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - clutch, first

1шт.

6

N13959

SEAL

- outer, first clutch

1шт.

7

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, first clutch

1шт.

8

N8856

DRUM

AND SHAFT - clutch, first

1шт.

9

A17918

RING

SNAP RING - clutch plate, forward and third

2шт.

10

D76979

CLUTCH ASSEMBLY

PLATE - end, forward clutch, forward and third

1шт.

11

D77063

PLATE ASSY.

DISC - internal tooth, forward and third clutch

12шт.

12

A17921

DISC

- external tooth, forward and third clutch

12шт.

N13958

KIT

PISTON ASSEMBLY - forward clutch, third, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - forward clutch, third

1шт.

14

N13959

SEAL

- outer, forward and third clutch

1шт.

15

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, forward and third clutch

2шт.

16

N8853

DRUM

AND SHAFT - clutch, forward and third

1шт.

17

D77063

PLATE ASSY.

DISC - internal tooth, forward and third clutch

6шт.

18

A17921

DISC

- external tooth, forward and third clutch

6шт.

19

A17919

PLATE

- end, third clutch, forward

1шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - third clutch, forward, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - third clutch, forward

1шт.

21

N13959

SEAL

- outer, forward and third clutch

1шт.

22

A17918

RING

SNAP RING - clutch plate, reverse and second

2шт.

23

D76979

CLUTCH ASSEMBLY

PLATE - end, reverse clutch, second

1шт.

24

D77063

PLATE ASSY.

DISC - internal tooth, reverse and second clutch

12шт.

25

A17921

DISC

- external tooth, reverse and second clutch

12шт.

N13958

KIT

PISTON ASSEMBLY - reverse clutch, second, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - reverse clutch, second

1шт.

27

N13959

SEAL

- outer, reverse and second clutch

1шт.

28

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, reverse and second clutch

2шт.

29

N8855

DRUM

AND SHAFT - clutch, reverse and second

1шт.

30

A17919

PLATE

- end, second clutch, reverse and second

1шт.

31

D77063

PLATE ASSY.

DISC - internal tooth, reverse and second clutch

6шт.

32

A17921

DISC

- external tooth, reverse and second clutch

6шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - second clutch, reverse, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON - second clutch, reverse

1шт.

34

N13959

SEAL

- outer, reverse and second clutch

1шт.
