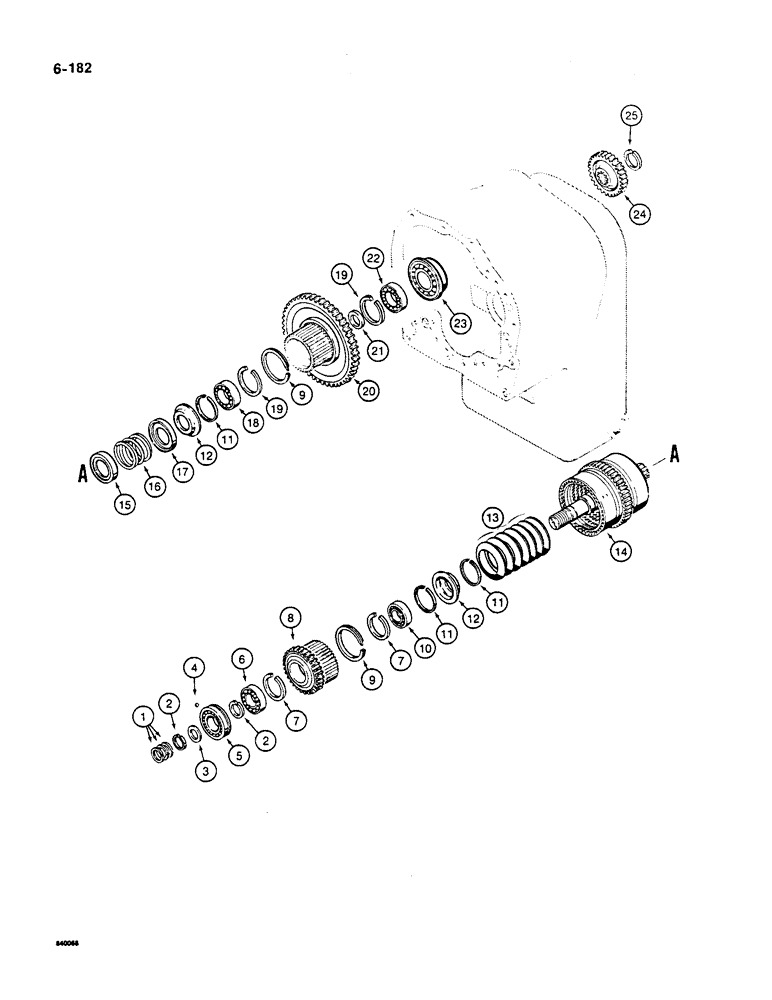

Запчасти Case W36 (6-182) - TRANSMISSION ASSEMBLY, FORWARD AND THIRD CLUTCH SHAFT PARTS (06) - POWER TRAIN

1

A17925

SPRING

PISTON RING - clutch shaft

3шт.

2

L33518

RING

SNAP RING - rear bearing

2шт.

3

N8851

BACK PLATE

PLATE - end, rear bearing

1шт.

4

211-203

BALL,1/8" Dia

- 1/8", grade 25, chrome alloy steel

1шт.

5

N8852

ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, clutch, rear

1шт.

6

D77046

BALL BEARING

BEARING - ball, clutch driven gear

1шт.

7

D77019

RING

SNAP RING - clutch bearing

2шт.

8

N13339

GEAR

- driven

1шт.

9

L33512

RING

- oil baffle

2шт.

10

S89657

BEARING

- ball, driven gear

1шт.

11

E114328

RING, SNAP

SNAP RING - spring retainer

3шт.

12

N6812

RETAINER

- spring

2шт.

13

D80421

WASHER

BELLEVILLE SPRING - piston return

7шт.

14

REF

INSTRUCTION

CLUTCH - forward and third, parts list Figure 6-189

1шт.

15

S89661

RETAINER

SEAT - spring, rear

1шт.

16

L33487

VALVE SPRING

SPRING - piston return

1шт.

17

L33488

RETAINER

SEAT - spring, front

1шт.

18

L33515

BALL BEARING

BEARING - ball, third gear, rear

1шт.

19

L33516

RING

- retaining, bearing

2шт.

20

D77026

GEAR WHEEL

GEAR - third

1шт.

21

S89649

SPACER

- third gear

1шт.

22

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

BEARING - ball, third gear, front

1шт.

23

N9801

ROLLER BEARING,45 mm ID x 100 mm OD x 25 mm

BEARING - ball, clutch, front

1шт.

24

N8840

PINION

GEAR - drive, first and fourth

1шт.

25

S89666

RETAINER

SNAP RING - gear

1шт.
