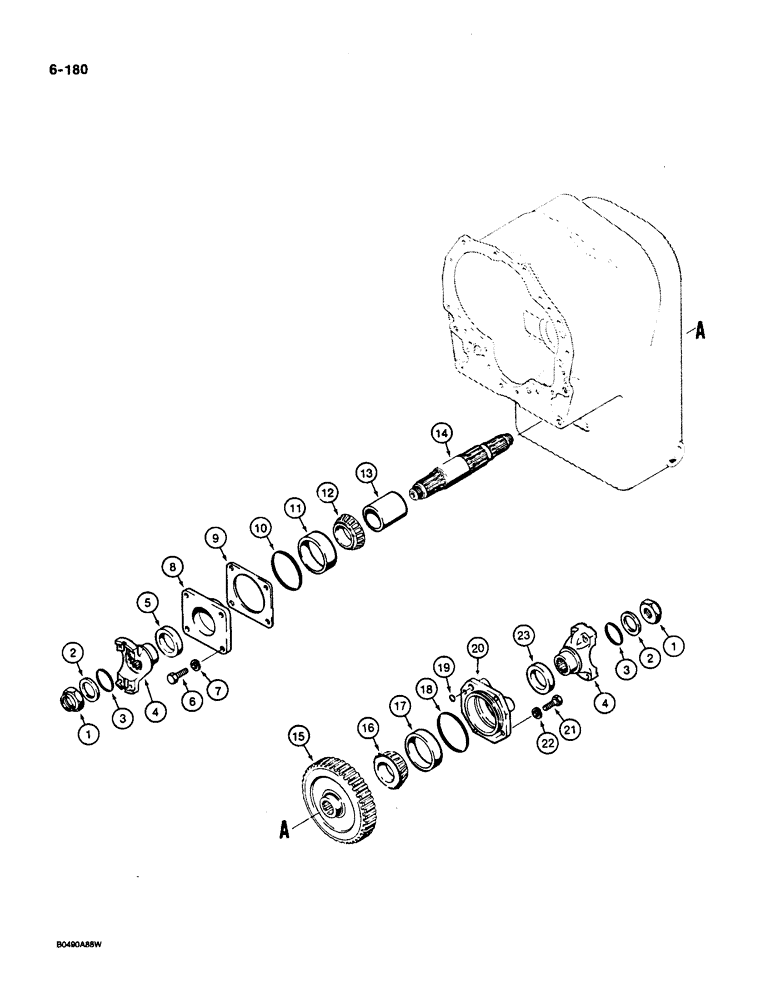

Запчасти Case W36 (6-180) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT - FRONT AND REAR (06) - POWER TRAIN

1

S89695

NUT

- hex, lock, 1-1/4" - 12 NF

2шт.

ITEM NO. 1 IS ACTUALLY A 1 1/2" NUT-IF DLR NEEDS A 1 1/4" NUT, PER M. LISCO SHOULD USE 131-487.

1шт.

2

S89696

WASHER

- special

2шт.

3

S89697

O-RING

- yoke

2шт.

4

E155285

YOKE

- output

2шт.

5

S89699

OIL SEAL

- yoke

1шт.

6

113-515

BOLT,Hex, 9/16" - 12 x 1-1/4", Gr 5, Full Thd

4шт.

7

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

8

S89700

CAP

SUPPORT - bearing, rear

1шт.

9

S89702

SHIM,.004" Thk

(0.10 mm) .004" Thk

1шт.

9

S89703

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

9

S89704

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

9

S89705

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- bearing seal

1шт.

11

N8875

CAP

CUP - tapered roller bearing

1шт.

12

S16300

BEARING

- tapered roller

1шт.

13

N8842

SPACER

- shaft, rear

1шт.

14

N8876

SHAFT

- output

1шт.

15

N8843

GEAR

- output shaft

1шт.

16

S16300

BEARING

- tapered roller

1шт.

17

H755140

CUP

- tapered roller bearing

1шт.

18

S92346

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- bearing seal

1шт.

19

S89712

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- bearing support, small

1шт.

20

S89713

SUPPORT

- bearing

1шт.

21

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4", plated

4шт.

22

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

23

S89699

OIL SEAL

- yoke

1шт.
