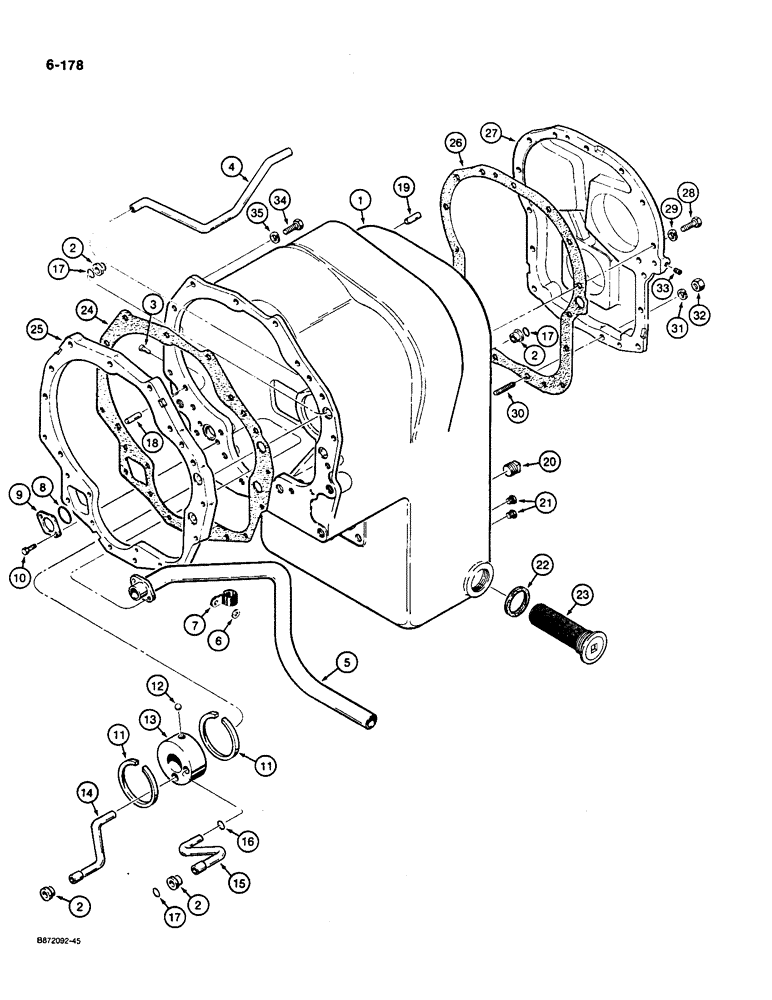

Запчасти Case W36 (6-178) - TRANSMISSION ASSEMBLY, TRANSMISSION CASE (06) - POWER TRAIN

70673965

BOX

CASE ASSEMBLY - transmission, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

2

A55734

SLEEVE

- tube

4шт.

3

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- tube clamp

1шт.

4

S89618

TUBE

- low speed

1шт.

5

D77003

TUBE,10.94, 14.75" L

- suction

1шт.

6

195-18

WASHER,1/4"

- flat, 1/4"

1шт.

7

D39138

CLAMP

- tube

1шт.

8

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- seal, suction tube

1шт.

9

L33481

WASHER

PLATE - retainer, section tube

1шт.

10

114-128

BOLT,Locking, 5/16" - 24 x 1", Gr 5

2шт.

11

D47486

SNAP RING

RETAINING RING - oil distributor

2шт.

12

211-206

BALL,1/4" Dia

- 1/4", grade 25, chrome alloy steel

1шт.

13

E104171

VALVE

OIL DISTRIBUTOR - transmission

1шт.

14

D77032

TUBE,0.375" OD

- lubrication, fourth clutch

1шт.

15

D77031

TUBE

- fourth speed

1шт.

16

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- fourth speed tube

1шт.

17

16202

O-RING,40544" ID x 13" OD x 1"

- tube sleeve

4шт.

18

D76981

PIN

DOWEL PIN - transmission, torque converter mounting

2шт.

19

S89619

DOWEL

PIN - transmission, rear cover mounting

2шт.

20

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - magnetic, hex socket head, 3/4" NPT

1шт.

21

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

2шт.

22

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

23

L33482

FILTER SCREEN

SCREEN - oil

1шт.

24

L33476

GASKET

- converter mounting

1шт.

25

D76980

SPACER

- case

1шт.

26

S89620

GASKET

- front cover

1шт.

27

N8844

COVER

- front

1шт.

28

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

13шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

13шт.

30

D77015

STUD

- 7/16" - 20 NF and 14 NC

2шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

32

129-530

NUT,7/16"-20, G8

2шт.

33

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

34

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex head, 7/16" - 14 NC x 2-1/4", plated

10шт.

35

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.
