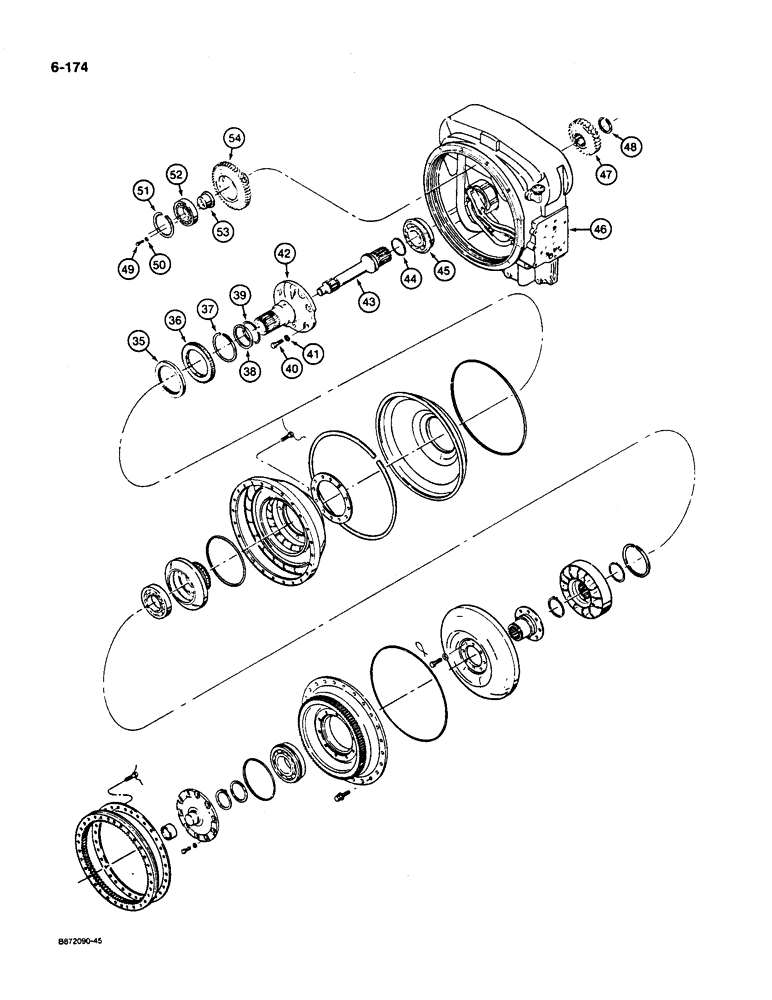

Запчасти Case W36 (6-174) - TRANSMISSION ASSEMBLY, TORQUE CONVERTER (06) - POWER TRAIN

35

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

OIL SEAL - impeller hub

1шт.

36

L33462

GEAR

- impeller hub

1шт.

37

A18009

RING

SNAP RING - impeller hub gear

1шт.

38

D80312

SEAL

RING - stator support

1шт.

39

D80313

SPRING

- expander

1шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

41

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

42

D80314

BRACKET

SHAFT AND FLANGE - stator support

1шт.

43

N8845

SHAFT

- turbine

1шт.

44

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

SEAL RING - turbine shaft

1шт.

45

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - turbine shaft

1шт.

46

L33466

HOUSING

CONVERTER HOUSING - parts list Figure 6-176

1шт.

47

186436A1

GEAR

- turbine shaft

1шт.

48

A27089

SNAP RING,2.36mm Thk, Ext

SNAP RING - turbine shaft

1шт.

49

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 1-1/4", plated

6шт.

50

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

51

L33464

RING, SNAP

RING - retaining, drive gear

3шт.

52

D83158

BEARING

- drive gear

3шт.

53

L33463

BRACKET

SUPPORT - bearing

3шт.

54

L33465

GEAR WHEEL

DRIVE GEAR - torque converter

3шт.
