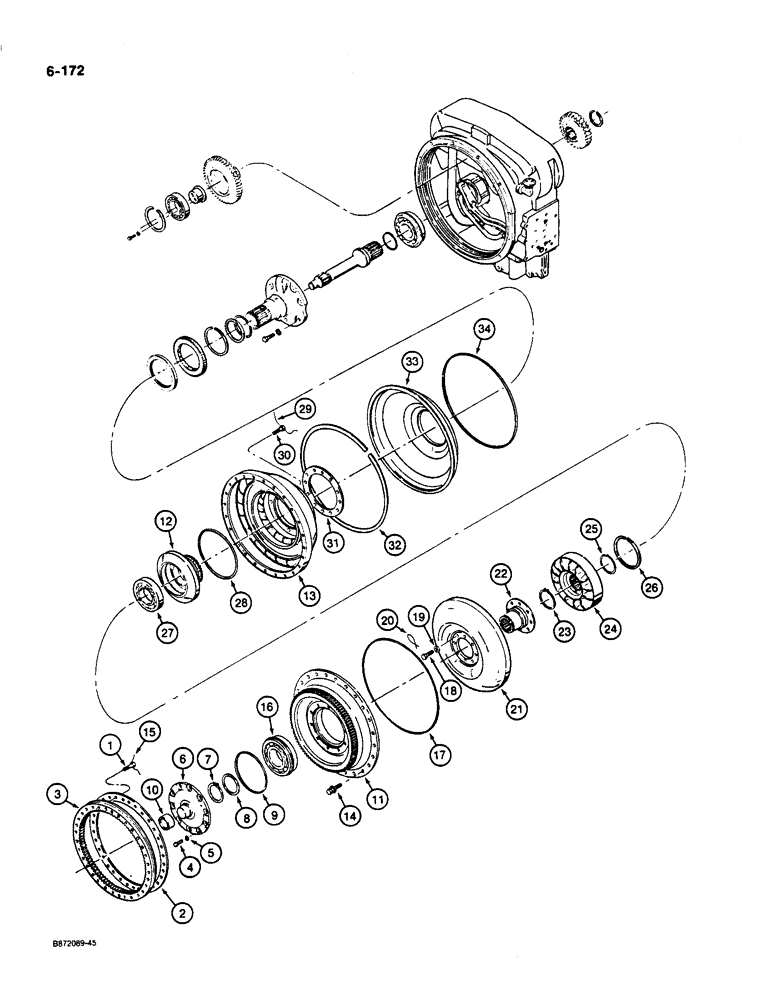

Запчасти Case W36 (6-172) - TRANSMISSION ASSEMBLY, TORQUE CONVERTER (06) - POWER TRAIN

E156848

TRANSMISSION

- includes parts on Figure 6-172

1шт.

1

E156297

BOLT,5/16" - 18 x 1 1/2"

BOLT - special, ring gear

32шт.

2

E156296

LOCKING RING

SHIM - special, ring gear

1шт.

3

E156295

KIT

RING GEAR - flywheel

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

6

N8850

CAP

- bearing

1шт.

7

N8866

RING

SNAP RING - bearing

1шт.

8

N8849

WASHER

- bearing

1шт.

9

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

- bearing cap

1шт.

10

A18036

SLEEVE

- shaft

1шт.

11

N8847

COVER

- impeller

1шт.

12

D80318

HUB

- impeller

1шт.

13

D80319

IMPELLER

- torque converter

1шт.

14

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - special, includes washer

24шт.

15

391-709

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 84" long, if used

1шт.

16

N8848

BALL BEARING,60 mm ID x 139.7 mm OD x 31 mm

BEARING - impeller cover

1шт.

17

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- sealing

1шт.

18

A18033

SCREW

- special

8шт.

19

D23404

WASHER

- special

8шт.

20

391-701

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 6" long, if used

4шт.

21

N7995

TURBINE

- torque converter

1шт.

22

N8846

HUB

- turbine

1шт.

23

F35283

SNAP RING,#231, Ext

Ring, Snap, , stator #231, Ext

1шт.

24

D86577

STATOR

- torque converter

1шт.

25

L30685

SPACER

- stator

1шт.

26

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, , brg 5.00", Int, #500

1шт.

27

N7277

BALL BEARING,59.98mm ID x 130mm OD x 30.87mm W

BEARING - impeller hub

1шт.

28

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- impeller hub

1шт.

29

391-701

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 6" long, if used

4шт.

30

D80315

BOLT

- special, epoxy coated

12шт.

31

D80316

RING

- spacer

1шт.

32

L33461

RING

- retaining, oil baffle

1шт.

33

L33459

BAFFLE

- oil

1шт.

34

L33460

RING

SEAL RING - oil baffle

1шт.
