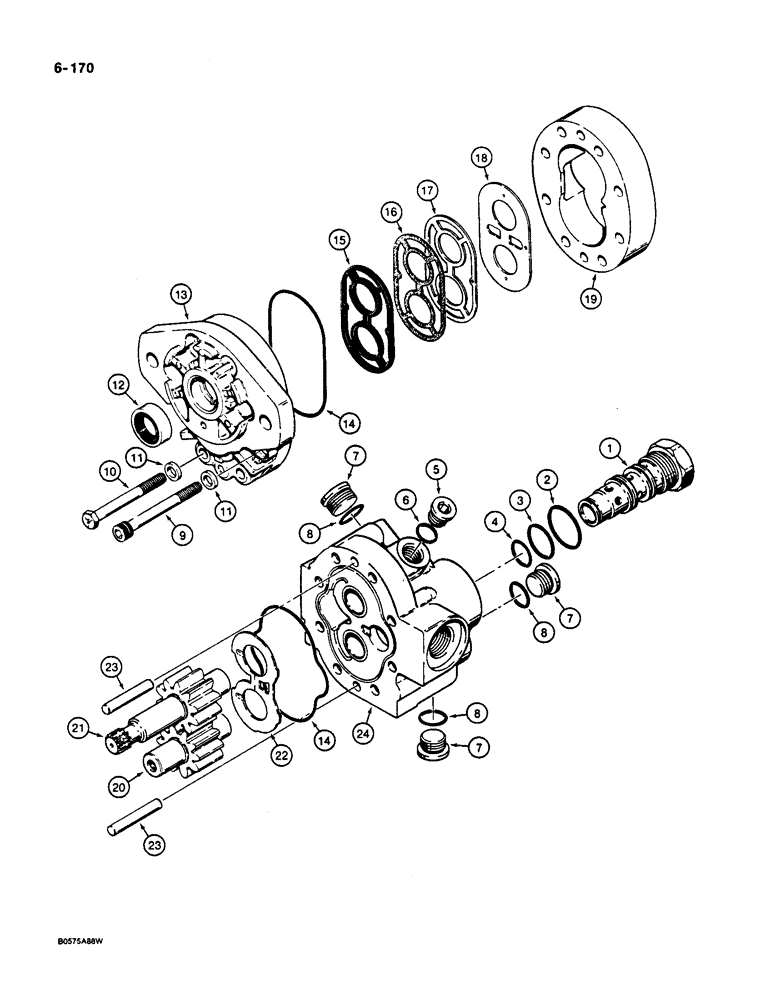

Запчасти Case W36 (6-170) - HYDRAULIC COOLING PUMP - D77017 (06) - POWER TRAIN

D77017

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic cooling, Includes: Ref. 1 - 24

1шт.

D80436

VALVE

RELIEF VALVE ASSEMBLY - pump, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large

1шт.

3

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- center

2шт.

4

D80448

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- small

1шт.

5

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Soc, 9/16"-18 ORB

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 8 Hex Soc, 3/4"-16 ORB

3шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

9

61-552

HEX SOC SCREW,5/16"-18 x 3 1/4"

SCREW - hex socket head, 5/16" - 18 NC x 3-1/4"

2шт.

10

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex head, 5/16" - 18 NC x 3-1/4", plated

6шт.

11

195-2026

WASHER,.328" x 5/8" x .065"

- flat, 5/16"

8шт.

12

N9976

SEAL

- shaft

1шт.

13

R31026

COVER

- drive shaft end

1шт.

14

H758599

O-RING,2.989" ID x 3.129" OD

- seal

2шт.

15

R31023

SEAL

- pump

1шт.

16

R31022

GASKET

- pump

1шт.

17

R31021

SHIELD

HEAT SHIELD - pump

1шт.

18

R31020

LARGE PLATE

WEAR PLATE - pump

1шт.

19

D80427

HOUSING

- gear

1шт.

20

D80429

GEAR

DRIVEN GEAR - pump

1шт.

21

D80437

GEAR

DRIVE GEAR - pump

1шт.

22

R31029

LARGE PLATE

THRUST PLATE - pump

1шт.

23

A7975

PIN

DOWEL PIN - pump

2шт.

24

D80428

HOUSING

COVER - port end

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
