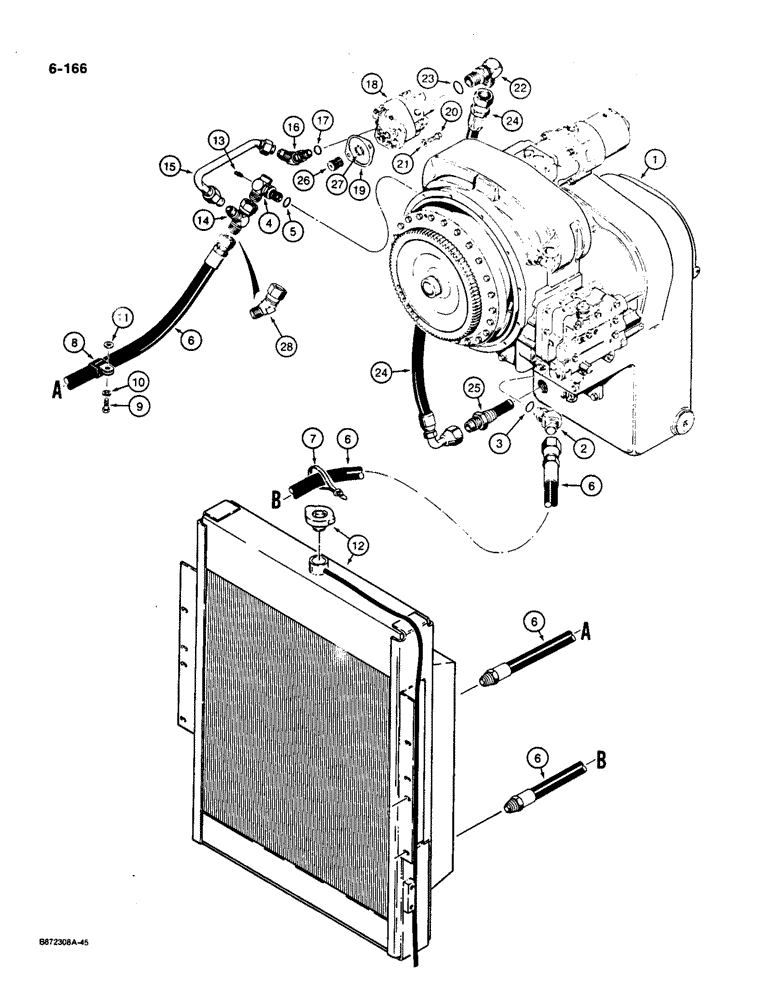

Запчасти Case W36 (6-166) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

E156848

TRANSMISSION

- see parts lists Figure 6-172

1шт.

2

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 3 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

4

L73442

FITTING

TEE - special, adjustable, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

6

E155974

HOSE ASSY.

HOSE - 1680 mm long, radiator, transmission

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

E65230

CLAMP,31.75mm ID, 10.16mm Bolt Hole, P Type

- hose

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

12

E155963

RADIATOR

- cooling, parts list Figure 2-54

1шт.

13

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

14

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Adjustable 37º, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

15

L78136

TUBE

- transmission cooling

1шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

D77017

PUMP, HYDRAULIC

PUMP - cooling, parts list Figure 6-170

1шт.

19

D77064

GASKET

- pump

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

24

D78306

HOSE

- 32-1/2" long, Serial Range: screen-pump

1шт.

25

D78305

SCREEN

- transmission

1шт.

26

D78317

GEAR WHEEL

GEAR - coupling, Includes: Ref. 27

1шт.

27

A18024

RING, SNAP

RETAINING RING - coupling

1шт.

28

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, swivel

1шт.
