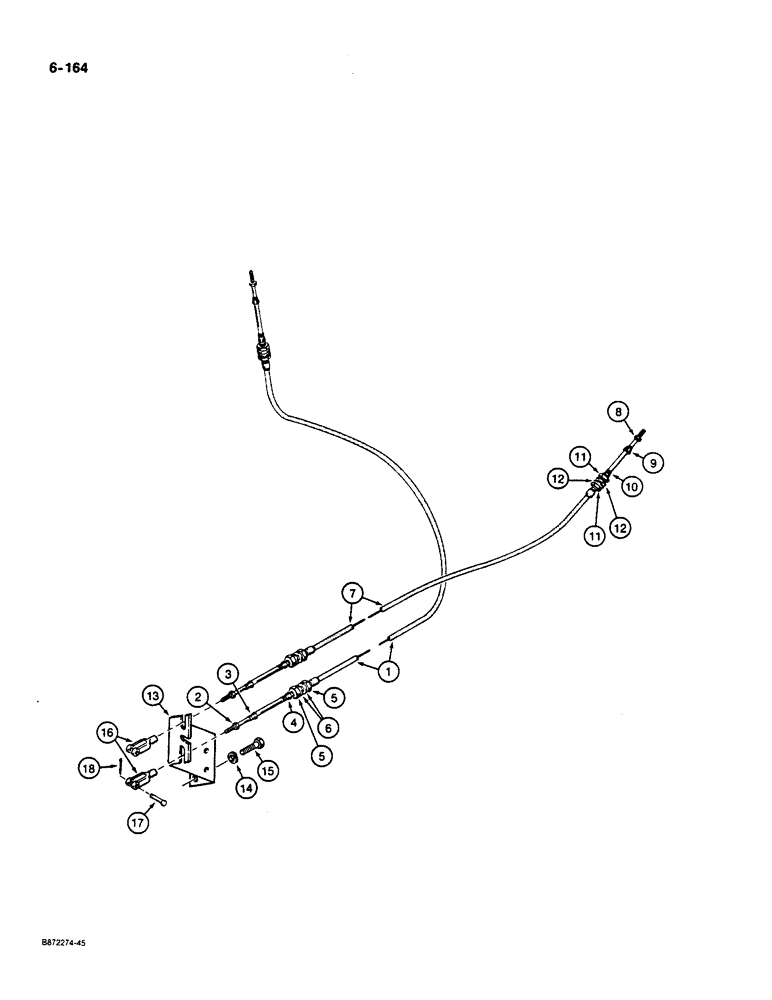

Запчасти Case W36 (6-164) - TRANSMISSION CONTROLS, CABLES AND LINKAGE (06) - POWER TRAIN

L126058

CABLE

ASSEMBLY - speed control, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - speed control

1шт.

2

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - cable

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - cable

2шт.

5

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - hex, 5/8" - 18 NF

4шт.

6

195-108

WASHER,5/8"

- flat, 5/8"

4шт.

L126059

CABLE ASSY.

CABLE ASSEMBLY - direction control, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - direction control

1шт.

8

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - sleeve, swivel

2шт.

11

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8" - 18 NF

4шт.

12

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8"

4шт.

13

L100135

BRACKET

- cable support

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

16

A18709

CLEVIS

- adjustable

2шт.

17

141-3

CLEVIS PIN,5/16" x .940"

- 3/8"

2шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
