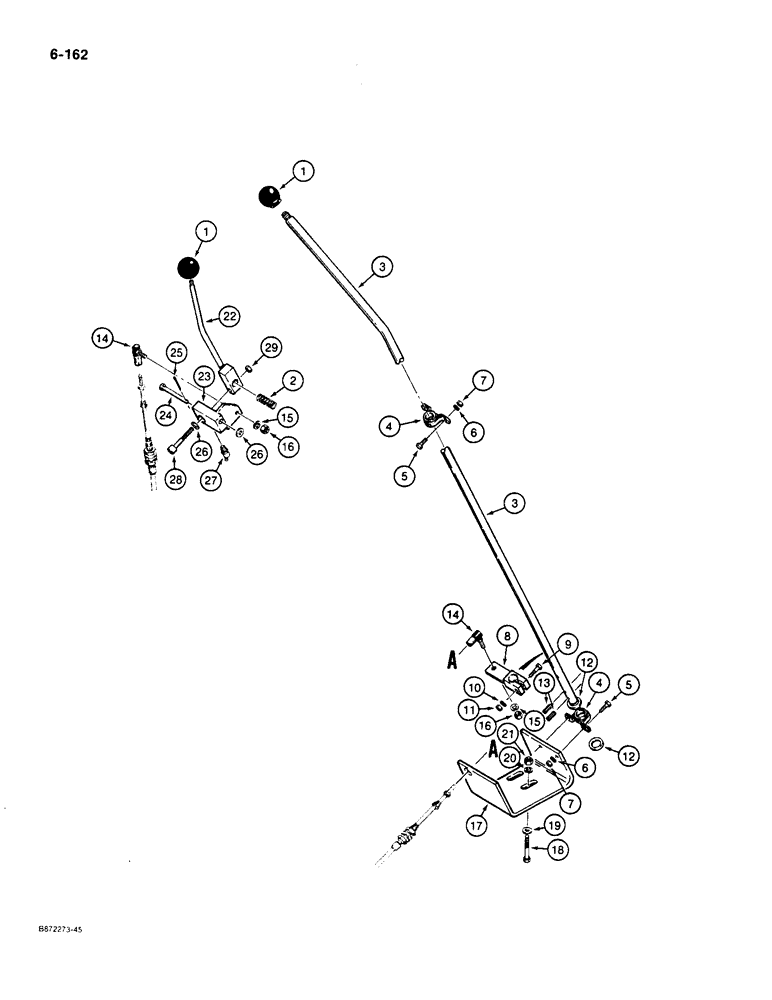

Запчасти Case W36 (6-162) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

A23885

KNOB

- direction and speed lever

2шт.

2

A30709

VALVE SPRING

SPRING - speed selector

1шт.

3

L79127

SHAFT

- direction selector

1шт.

4

L71373

BEARING ASSY,19.05mm ID

BEARING ASSEMBLY - shaft

2шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

8

L77328

LEVER

- direction control

1шт.

9

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

T22220

WASHER

- special

2шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

- cable end

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

129-121

NUT,1/4"-28, G5

2шт.

17

L109572

BRACKET

- transmission control lever

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

19

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

L105780

LEVER

- speed selection, located at left of instrument panel

1шт.

23

L106399

BLOCK

- speed selector

1шт.

24

L105778

PIN

- speed selector

1шт.

25

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

26

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

27

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.

28

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - hex socket head, 3/8" - 16 NC x 2"

1шт.

29

131-66

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
