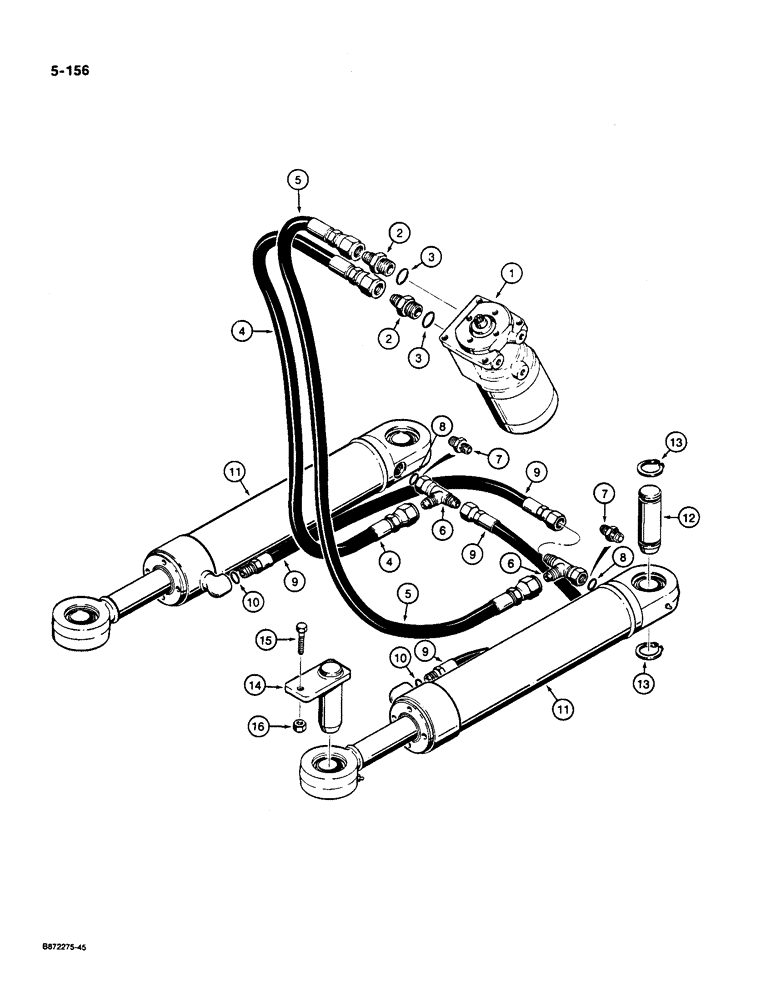

Запчасти Case W36 (5-156) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L117746

VALVE

- steering, parts list Figure 5-144

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L74333

HOSE,0.63" ID x 53.00", SAE 100R2 Type A

ASSY, 0.63" ID x 53.00", SAE 100R2, Type A, Left-Hand Cylinder, Right-Hand Turn, Control Valve to Tee

1шт.

6

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel

2шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

9

D34838

HOSE

- 33" (838 mm) long, tees to steering cylinders, Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

2шт.

11

G101563

CYLINDER

- steering, parts list Figure 5-158

2шт.

12

L74482

PIN

- cylinder, front

2шт.

13

L76597

RING

SNAP RING - pin

4шт.

14

L70534

PIN

- cylinder, rear

2шт.

15

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

16

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.
