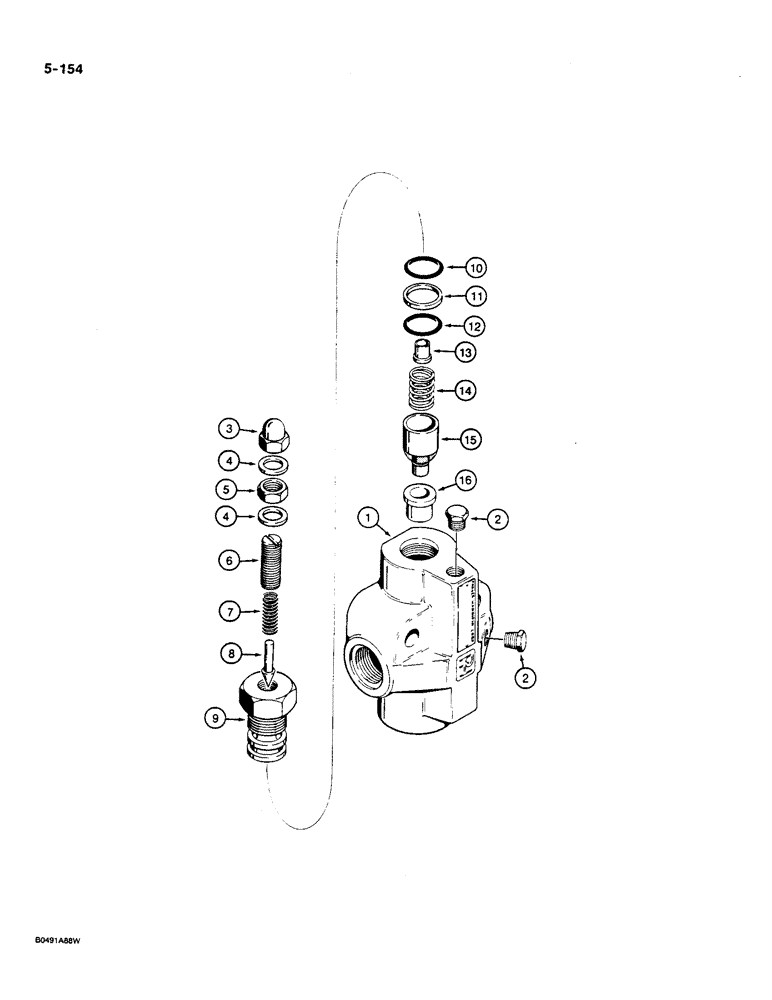

Запчасти Case W36 (5-154) - STEERING RELIEF VALVE - L104049 (05) - STEERING

L104049

VALVE

RELIEF VALVE ASSEMBLY - steering, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve assembly

1шт.

2

221-661

PLUG,Hex Hd, 1/8"-27

- hex head, 1/8"

2шт.

W12116

KIT

CARTRIDGE ASSEMBLY - relief valve, Includes: Ref. 3 - 16

1шт.

3

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" - 14 NF

1шт.

4

D26270

WASHER, SEALING

WASHER - special

2шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

6

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

- 5/16" - 24 NF x 7/8"

1шт.

7

D26268

SPRING

- small, plunger

1шт.

8

D26267

PLUNGER

- relief

1шт.

9

D26262

CAP

HOUSING - cartridge assembly

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - housing

1шт.

12

L30444

O-RING,0.521" ID x 0.661" OD

- outer

1шт.

13

D26266

SEAT

- plunger

1шт.

14

D26261

VALVE SPRING

SPRING - large

1шт.

15

L30687

SPOOL

POPPET - relief

1шт.

16

D26259

SEAT

- poppet

1шт.
