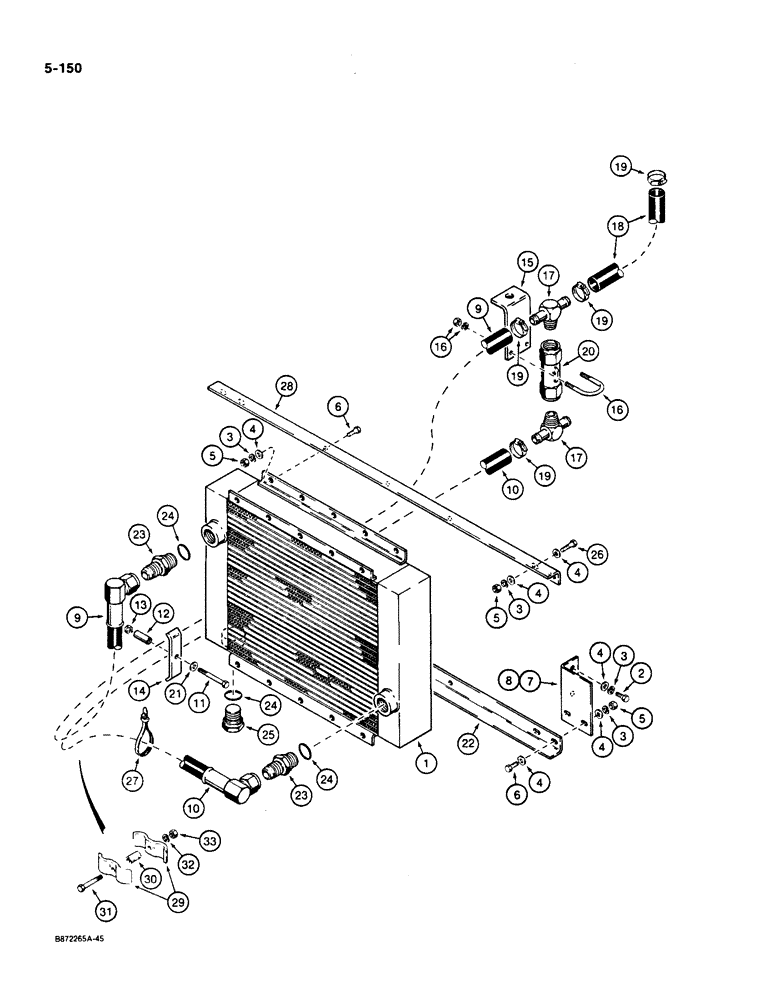

Запчасти Case W36 (5-150) - STEERING HYDRAULIC CIRCUIT, OIL COOLER TO RESERVOIR (05) - STEERING

1

P1337701

COOLER ASSY.

OIL COOLER - hydraulic oil

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

4

195-104

WASHER,3/8"

- flat, , plated 3/8"

20шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

7

E155064

SUPPORT

BRACKET - cooler mounting, right-hand

1шт.

8

E155065

SUPPORT

BRACKET - cooler mounting, left-hand

1шт.

9

E155731

HOSE ASSY.

HOSE - 2070 mm long, supply, oil cooler to tee at steering return relief valve

1шт.

10

E155732

HOSE

- 2360 mm long, return, from tee at steering relief valve to oil cooler

1шт.

11

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

12

G49622

SPACER,5/8" Tube x 1 7/16"

- clamp

1шт.

13

131-66

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

14

L47503

BRACKET

CLAMP - hose

1шт.

15

L74828

BRACKET

- check valve mounting

1шт.

16

L73301

CLAMP,51mm ID

U-BOLT- check valve, includes hardware

1шт.

17

L74865

TEE

- special

2шт.

18

L106901

HOSE,25.4 mm ID x 254.00 mm, SAE 100R3

- 10" (254 mm) long x 1" (25 mm) ID, tee at steering return relief valve to hydraulic reservoir

1шт.

For service order P/N S118383 bulk 192" long hose and cut to required length of 10".

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

20

L74869

VALVE

RELIEF VALVE - cooler

1шт.

21

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

22

E155090

SUPPORT

BRACKET - oil cooler to radiator, lower

1шт.

23

E155729

SUN VISOR

ADAPTER - hose to oil cooler

2шт.

24

P30450

O-RING,3mm Thk x 36mm ID

- oil cooler

3шт.

25

P137401

PLUG

- drain, oil cooler

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

E156959

SUPPORT

BRACKET - oil cooler to radiator, upper

1шт.

29

R15257

CLAMP

- hose

2шт.

30

D95744

SPACER

- hose clamp

1шт.

31

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3 - See Ref. 18

1шт.
