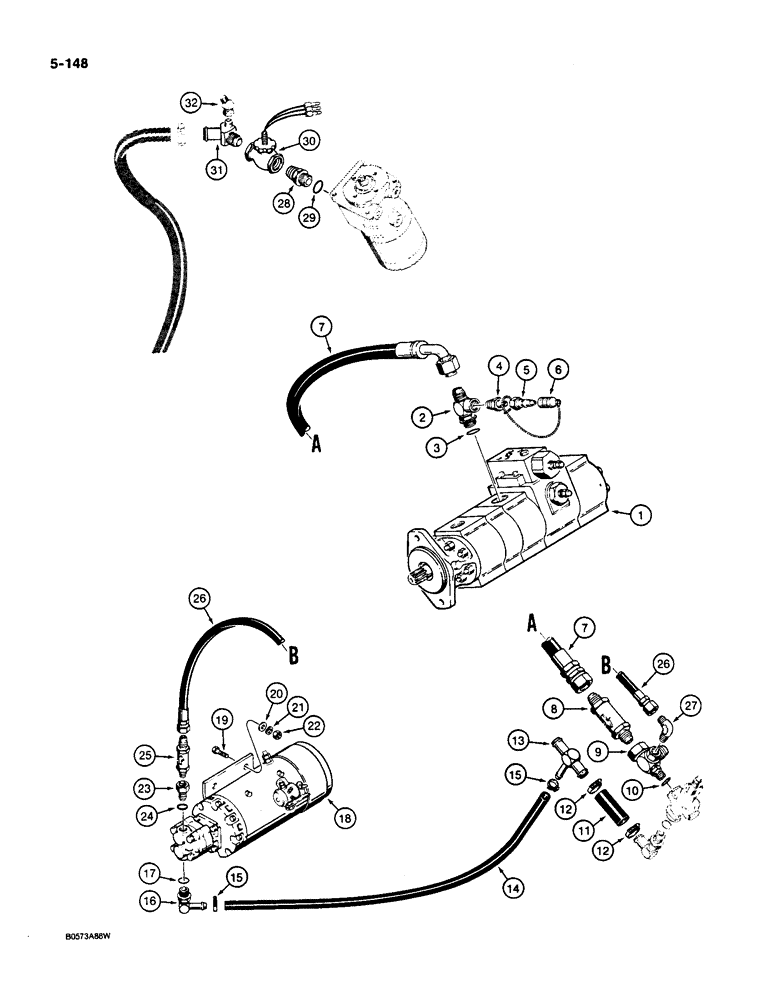

Запчасти Case W36 (5-148) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR, USED ON MODELS WITH AUXILIARY STEERING (05) - STEERING

1

L72333

PUMP

- hydraulic, parts list Figures 8-272 - 8-276

1шт.

2

L53125

TEE

- special, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

4

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight

1шт.

5

S206607

DISC

COUPLING - male

1шт.

6

D123387

DUST CAP

COVER - dust

1шт.

7

E156010

HOSE

- 1118 mm long, steering, to relief valve

1шт.

8

L59608

LOCK VALVE

CHECK VALVE - steering supply

1шт.

9

L100704

FITTING

- special, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

11

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 3-1/2" long, Serial Range: return-tee

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

13

L107021

TEE

- special

1шт.

14

L107022

HOSE

- 26" long, suction, auxiliary steering

1шт.

15

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

16

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

90°, Incl Ref 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

L116118

PUMP, HYDRAULIC

PUMP - auxiliary steering, parts list figure 5-152

1шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", plated

4шт.

20

495-21044

WASHER,3/8"

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

23

218-5099

FITTING

ADAPTER - straight, male to female, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

L70819

VALVE

CHECK VALVE - auxiliary steering

1шт.

26

L100703

HOSE

- 35" long, auxiliary steering supply

1шт.

27

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

28

218-5020

ADAPTER,1-5/16" - 12 Male ORB x 1" Male NPTF

- straight, Includes: Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

30

L113437

SWITCH

- flow

1шт.

31

L301248

FITTING

- stem, special

1шт.

32

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, swivel

1шт.
