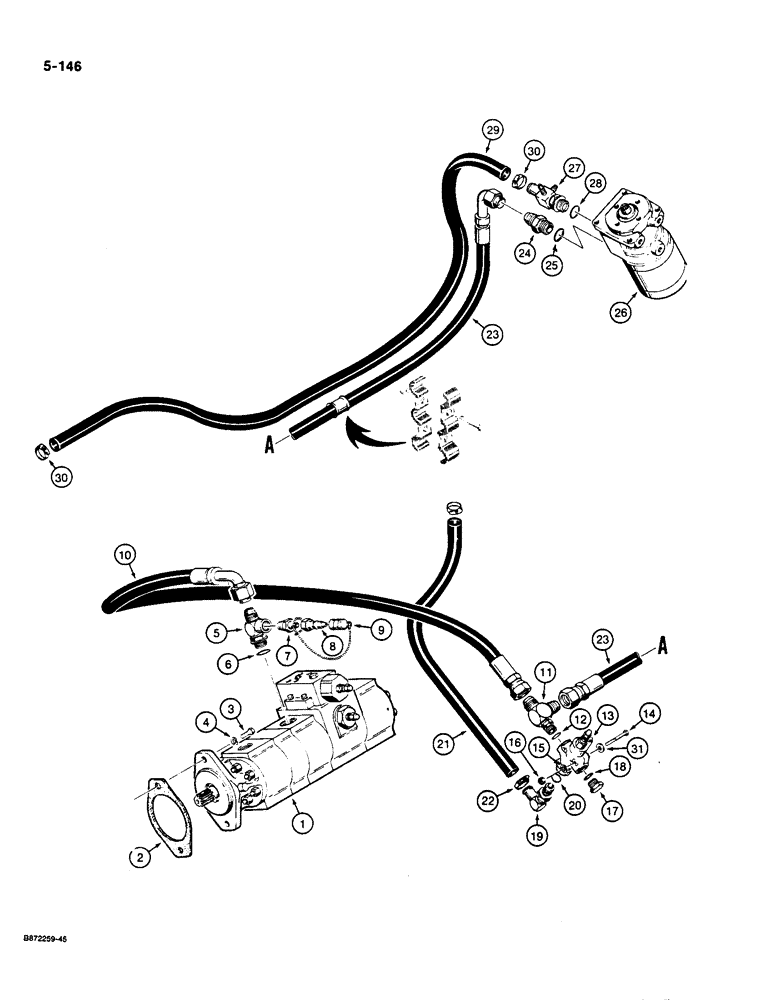

Запчасти Case W36 (5-146) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR, MODELS WITHOUT AUXILIARY STEERING (05) - STEERING

1

L72333

PUMP

- steering and loader, parts list Figures 8-272 - 8-276

1шт.

2

D53692

GASKET,0.79mm Thk

- pump

1шт.

3

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

L53125

TEE

- special, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

7

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight

1шт.

8

S206607

DISC

COUPLING - male

1шт.

9

D123387

DUST CAP

COVER - dust

1шт.

10

E156010

HOSE

- 1118 mm long, steering supply, hydraulic pump to relief valve

1шт.

11

L73012

TEE

- special, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

13

L104049

VALVE

RELIEF VALVE - steering, parts list Figure 5-154

1шт.

14

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

86512512

PLUG,7/8" - 14 ORB

- hex head, 7/8" - 14 NF, Incl. Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

19

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Includes Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

21

L103708

LARGE HOSE

HOSE - 48" long, return from steering supply relief valve to hydraulic reservoir

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

23

E156099

HOSE ASSY.

HOSE - 57-1/8" (1450 mm) long, steering supply, tee at steering supply relief valve to steering valve

1шт.

24

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Incl. Ref. 25 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

26

L117746

VALVE

- steering, parts list Figure 5-144

1шт.

27

L106872

SUN VISOR

STEM FITTING - special, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

29

E155060

HOSE,2642.00 mm, SAE J517 100R3

Return from Steering Valve to Tee at Steering Return Relief Valve 2642.00 mm, SAE J517 100R3

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

31

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.
