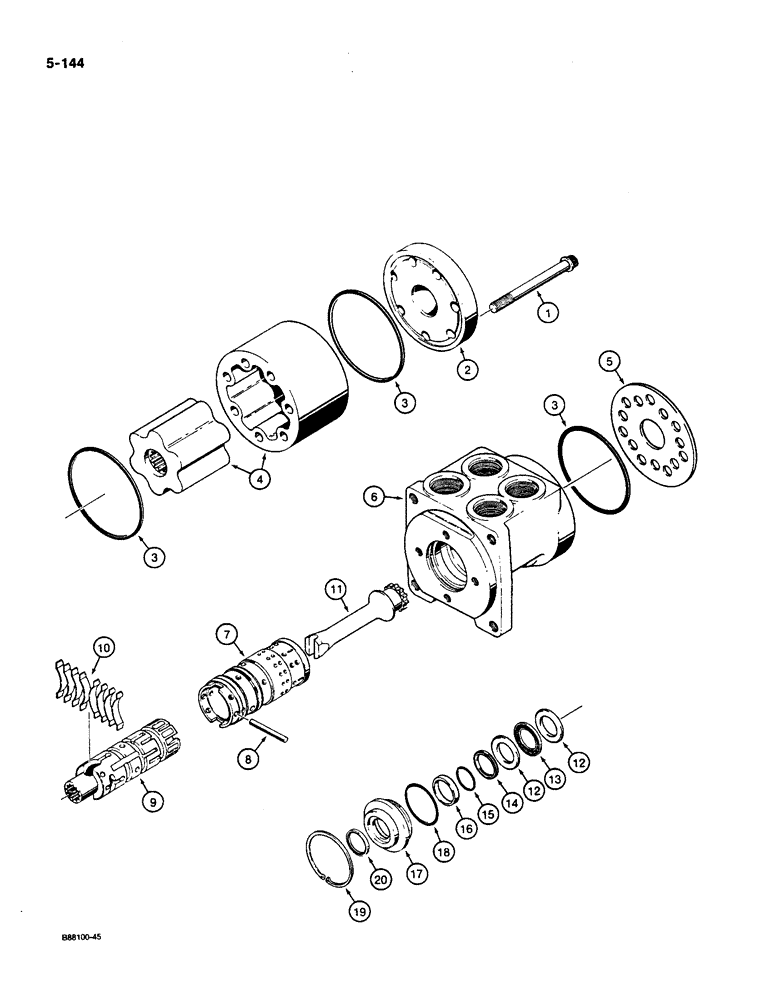

Запчасти Case W36 (5-144) - STEERING VALVE - L117746 (05) - STEERING

L117746

VALVE

ASSEMBLY - steering, Includes: Ref. 1 - 20

1шт.

1

E157001

BOLT

- Ferry head, special

7шт.

2

E157000

CAP

COVER - end

1шт.

3

E156998

O-RING

- large

3шт.

4

E156999

GEROTOR

SET - gerotor, valve

1шт.

5

E156997

LARGE PLATE

PLATE - wear

1шт.

E156973

CONTROL

ASSEMBLY - valve, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

8

E156991

PIN

- centering

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

E156992

SPRING

- centering

6-8шт.

Ref . Spring not available. Must order P/N300427 Spring Kit.

1шт.

11

E156996

SHAFT

- drive, valve

1шт.

12

D82804

RACE

WASHER - thrust bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Spool

1шт.

14

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- spool, inner

1шт.

15

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- spool, small

1шт.

16

N13314

RING

- backup

1шт.

17

E156994

RETAINER

- spool seal

1шт.

18

E156995

O-RING

- retainer, large

1шт.

19

D77388

SNAP RING,2.375", Int, #237

Ring, Snap, 2.375", Int, #237

1шт.

20

A28211

OIL SEAL

- dust

1шт.
