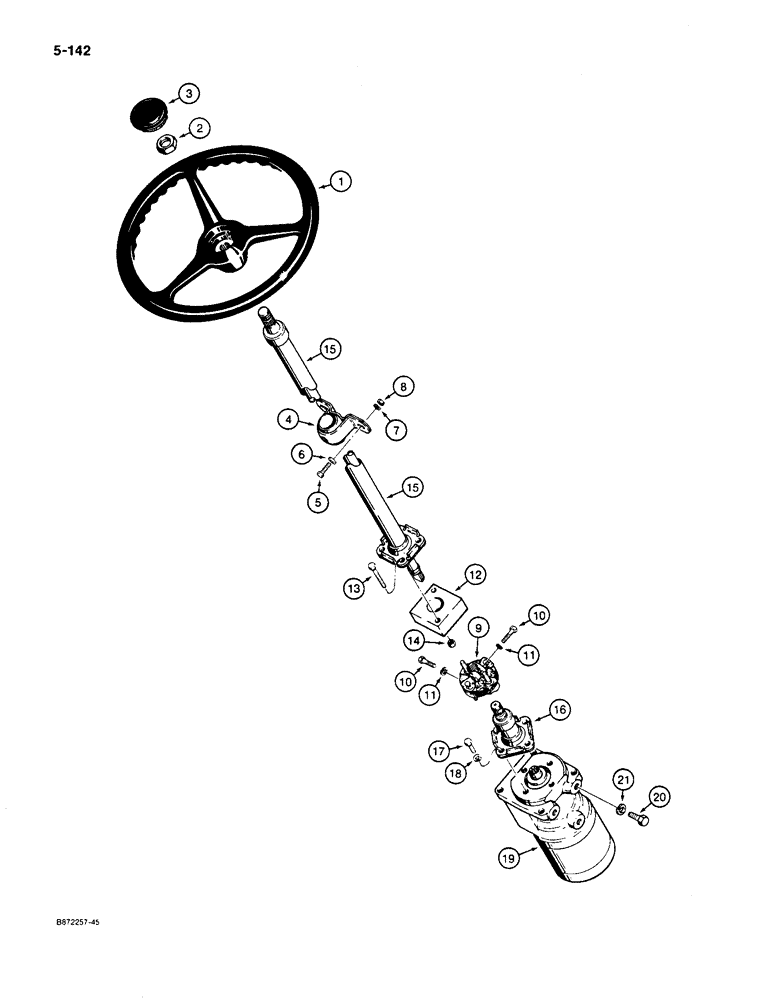

Запчасти Case W36 (5-142) - STEERING CONTROL PARTS (05) - STEERING

1

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

2

L33715

JAM NUT

- hex, steering wheel retaining

1шт.

3

L114276

CAP

- steering wheel

1шт.

4

L105044

BEARING

- steering column support

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

L100096

ISOLATOR

- steering column

1шт.

10

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 1-1/4", plated

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

L77038

SPACER

- steering column

1шт.

13

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

15

L100095

COLUMN JACKET

COLUMN - upper, parts not serviced

1шт.

16

L100706

CAP

COLUMN - lower, parts not serviced

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

L117746

VALVE

ASSEMBLY - steering, parts list Figure 5-144

1шт.

20

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.
