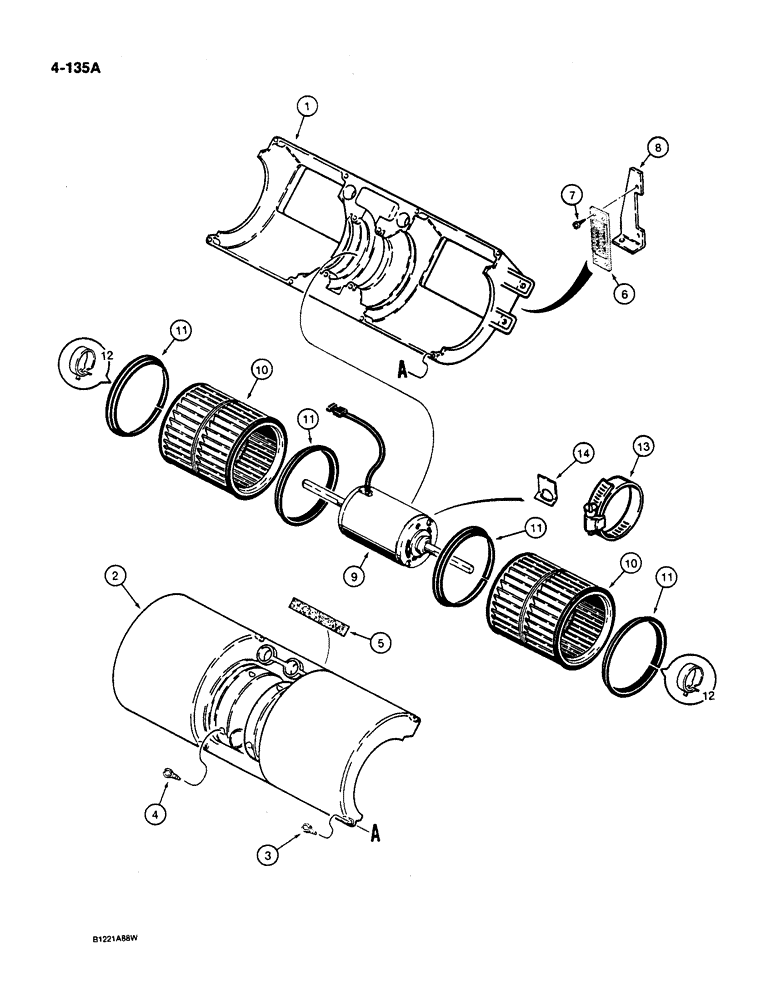

Запчасти Case W36 (4-135A) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab, not available as an assembly, for service order individual components listed below, Includes: Ref. 1 - 14

1шт.

1

F64740

HOUSING

- fans, lower

1шт.

2

F64741

HOUSING

- fans, upper

1шт.

3

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, self-tapping, No. 8 x 3/4", plated

8шт.

4

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - pan head, self-tapping, No. 8 x 1", plated

4шт.

5

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4" (102 mm) long, cut from F64119 bulk, see below

1шт.

The above cab blower assembly can also be purchased in P/N L36322 kit listed on fig. 4-112

1шт.

6

F44903

RESISTOR

- blower

1шт.

7

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated

2шт.

8

97389C1

SUPPORT

BRACKET - resistor mounting, with resistor mounted vertically

1шт.

9

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

1шт.

10

F64935

BLOWER,Fan

FAN - blower

2шт.

11

F64739

RING

- plastic, fan retaining

4шт.

12

F64936

CLAMP

- steel spring, fan retaining

2шт.

13

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, motor retaining

1шт.

14

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.

The above cab blower assembly can also be purchased in P/N L36322 kit listed on fig. 4-112

1шт.
