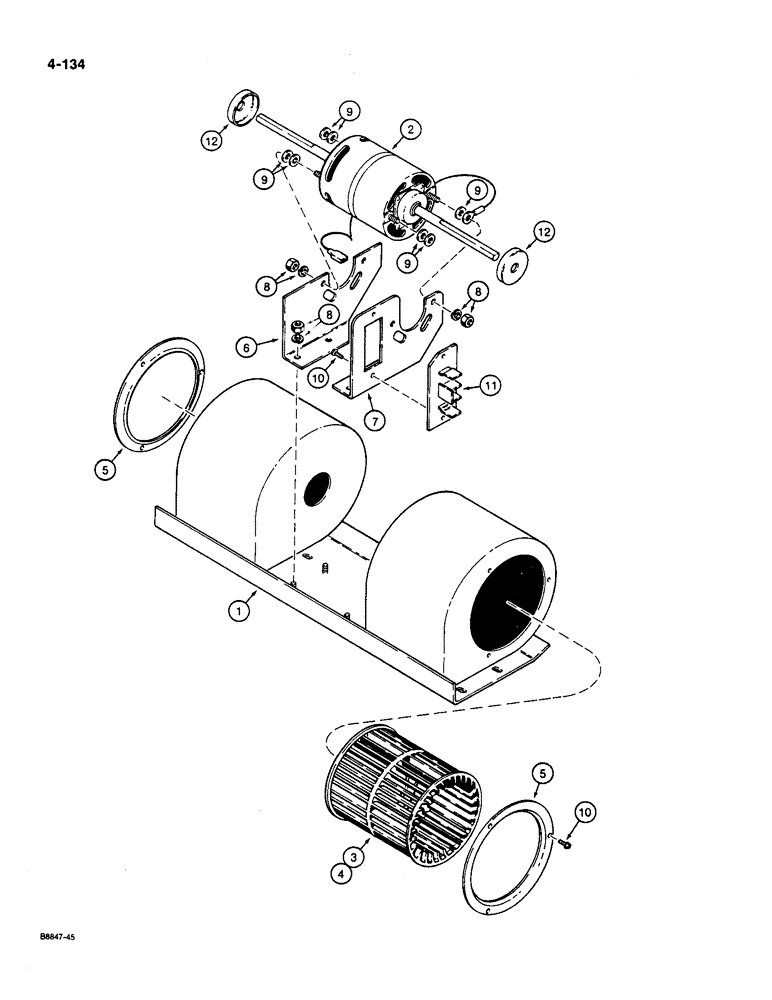

Запчасти Case W36 (4-134) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

N9827

HEATER

BLOWER ASSEMBLY - cab, SGM 6009-24V-LP, no longer available, order L36322 kit listed on Figure 4-112, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - blower

1шт.

2

N8624

MOTOR

- blower

1шт.

3

D87190

BLOWER,Fan, clockwise rotation

FAN - blower, clockwise rotation

1шт.

4

D87191

WHEEL

FAN - blower, counterclockwise rotation

1шт.

5

D72763

RING

- inlet

2шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - motor, left-hand

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - motor, right-hand

1шт.

8

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

8шт.

9

195-513

WASHER,#10

- flat, No. 10, plated

7шт.

10

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - hex washer head, slotted, self-tapping, No. 10 - 24 NC x 3/8 "

8шт.

11

N8625

RESISTOR

- motor

1шт.

12

N14814

SLINGER

- motor

2шт.
