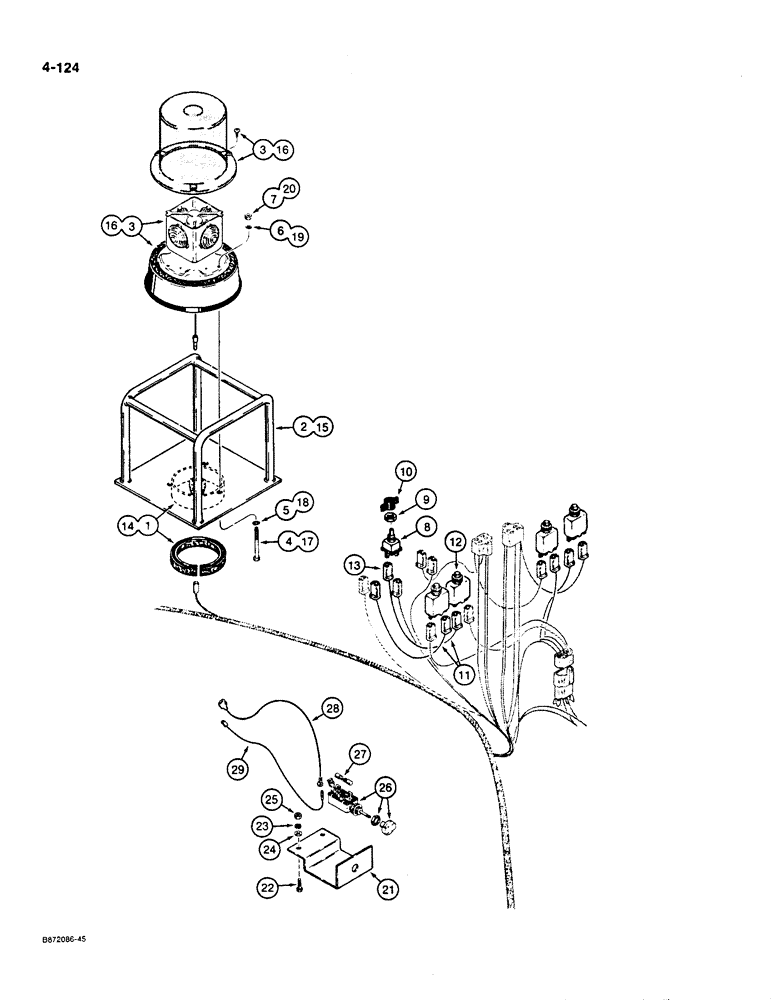

Запчасти Case W36 (4-124) - ROTATING BEACON AND WIRING (04) - ELECTRICAL SYSTEMS

1

L109042

GASKET

TRIM - 12-3/4" (350 mm) long, used on models with cab

1шт.

2

L114301

CAGE

- beacon, used on models with cab

1шт.

3

L110648

LAMP

ROTATING BEACON - 360 degree, amber lens, parts list Figure 4-126, used on models with cab

1шт.

4

182-138

SCREW,Sl Pan Hd, #10 - 24 x 3"

- machine, pan head slotted, No. 10 - 24 NC x 3", used on models with cab

3шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Used on models with cab Ext-Int Tooth, #10

3шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used on models with cab #10

3шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, used on models with cab

3шт.

8

L70872

SWITCH

- beacon, used on models with cab

1шт.

9

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- special, used on models with cab

1шт.

10

L74694

KNOB

- beacon switch, used on models with cab

1шт.

11

L114358

HARNESS

WIRE - jumper, used on models with cab

2шт.

12

F43510

BREAKER

- circuit, 10 amp, used on models with cab

1шт.

13

223-154

CONNECTOR, ELEC

CONNECTOR - terminal, used on models with cab

1шт.

14

L109042

GASKET

TRIM - 12-3/4" (350 mm) long, used on models with canopy

1шт.

15

L114301

CAGE

- beacon, used on models with canopy

1шт.

16

L110648

LAMP

ROTATING BEACON - 360 degree, amber lens, parts list Figure 4-126, used on models with canopy

1шт.

17

182-138

SCREW,Sl Pan Hd, #10 - 24 x 3"

- machine, pan head slotted, No. 10 - 24 NC x 3", used on models with canopy

3шт.

18

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Used on models with canopy Ext-Int Tooth, #10

3шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used on models with canopy #10

3шт.

20

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, used on models with canopy

3шт.

21

L114146

BRACKET

- beacon switch mounting, used on models with canopy

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated, Used on models with canopy

2шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used on models with canopy 1/4"

2шт.

24

495-21031

WASHER,1/4"

- flat, , plated, used on models with canopy 1/4"

2шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated, used on models with canopy

2шт.

L16099

SWITCH

ASSEMBLY - beacon, used on models with canopy, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SWITCH - beacon, used on models with canopy

1шт.

27

223-20

FUSE,20 Amp, Type SFE

- 20 amp, used on models with canopy

1шт.

28

L114446

HARNESS

WIRE - harness to switch, used on models with canopy

1шт.

29

L114447

HARNESS

WIRE - beacon to switch, used on models with canopy

1шт.
