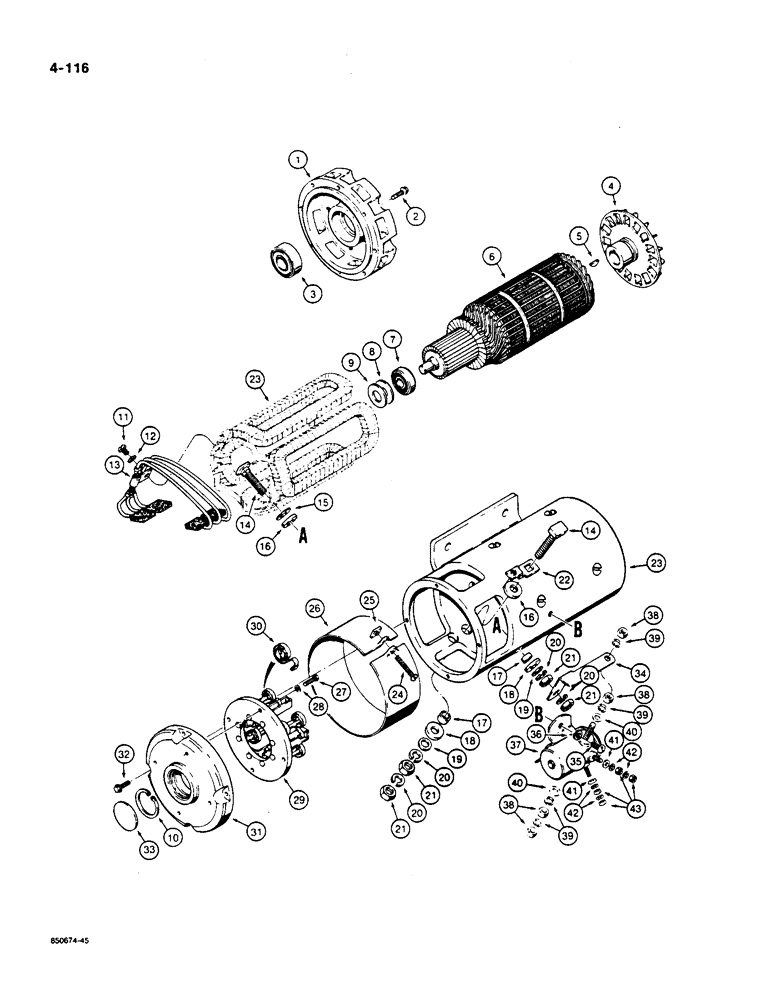

Запчасти Case W36 (4-116) - AUXILIARY STEERING MOTOR - D71479 (04) - ELECTRICAL SYSTEMS

D71479

MOTOR, ELECTRIC

MOTOR ASSEMBLY - auxiliary steering, Prestolite MBD-4311A, part of auxiliary steering pump and motor assembly, see Figure 5-152 for pump assembly, Includes: Ref. 1 - 33

1шт.

1

A45406

LARGE PLATE

PLATE - end, drive end

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT - end plate mounting

8шт.

3

A45399

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, end plate

1шт.

4

A45403

FAN

- cooling

1шт.

5

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Fan to armature #5, 1/8" x 5/8"

1шт.

6

A45396

ARMATURE

- motor

1шт.

7

A45398

BALL BEARING,0.4724" ID x 1.2598" OD x 0.3937"

BEARING - ball end plate

1шт.

A45407

KIT

RETAINER AND THRUST WASHER KIT, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - .015" (.38 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - .032" (.81 mm) thick

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush retaining

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - external tooth lock

2шт.

13

A45400

BRUSH SET

- includes 8 brushes

1шт.

A47850

KIT

TERMINAL KIT - motor, Includes: Ref. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

STUD - motor

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - flat, inner

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - terminal

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - flat, outer

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.

22

NSS

NOT SOLD SEPARAT

TERMINAL - brushes

1шт.

23

A45401

CRANKCASE ASSY

HOUSING AND FIELD WINDING ASSEMBLY - motor

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - band retaining

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - band

1шт.

26

A45397

CLAMP

BAND - cover

1шт.

A45404

PLATE ASSY.

PLATE ASSEMBLY - end, commutator end, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

BOLT - brush plate mounting

4шт.

28

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

29

A45405

PLATE ASSY.

PLATE - brush

1шт.

30

A40423

SPRING

SET - brushes, set of 8

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE - end, commutator

1шт.

32

NSS

NOT SOLD SEPARAT

BOLT - commutator end plate mounting

4шт.

33

41-23

PLUG,Exp, 1 7/16"

- expansion, bearing

1шт.

34

D71481

CONNECTOR, ELEC

STRAP - solenoid ground

1шт.

35

173-293

SCREW,Sl Rnd Hd, #10 - 32 x 5/16", Brass

- machine, round head slotted, No. 10 - 32 NF x 5/16", plated

2шт.

36

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

37

L115871

SOLENOID SWITCH

SOLENOID ASSEMBLY - motor, Includes: Ref. 38 - 43

1шт.

38

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.

39

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

40

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

41

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

42

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

43

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.
