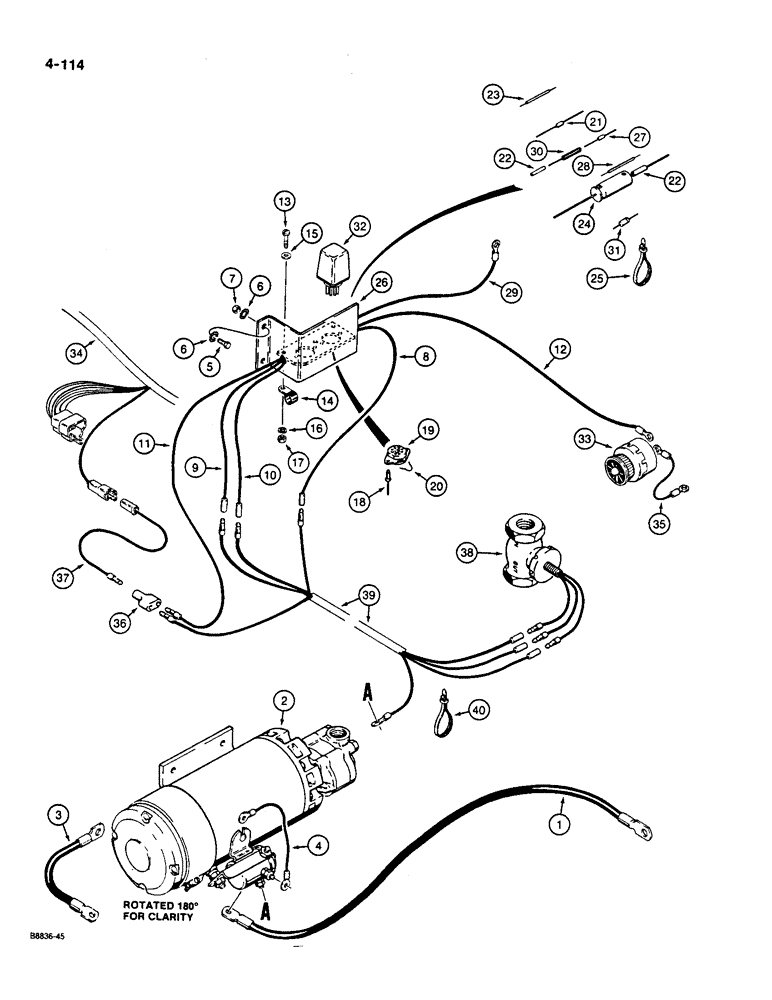

Запчасти Case W36 (4-114) - AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L72861

CABLE

- power supply

1шт.

2

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering, parts list Figure 5-152, mounting hardware Figure 5-148

1шт.

3

L57536

CABLE

WIRE - ground, pump

1шт.

5

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4"-20 NC x 1/2", plated

2шт.

6

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

L112206

SWITCH

SOCKET ASSEMBLY - steering, Includes: Ref. 8 - 31

1шт.

8

L70804

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-relay

1шт.

9

L100265

ELECTRICAL WIRE

WIRE - flow switch to relay, 19" (483 mm) long

1шт.

10

L100266

ELECTRICAL WIRE

WIRE - flow switch to relay, 21" (533 mm) long

1шт.

11

L57997

ELECTRICAL WIRE

WIRE -, Serial Range: harness-relay

1шт.

12

L79604

ELECTRICAL WIRE

WIRE - lamp and, Serial Range: buzzer-relay

1шт.

13

169-77

SCREW - Fillister head, No. 8 - 32 NC x 1/2"

2шт.

14

L108233

MOUNTING CLIP

CLAMP - wire

2шт.

15

195-10

WASHER,#8

2шт.

16

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

17

129-6

NUT,#8-32

2шт.

18

151-526

RIVET,Pop, 1/8" x .337"

- Socket Pop, 1/8" x .337"

4шт.

19

L57132

SOCKET

- relay

2шт.

20

L70845

ELECTRICAL WIRE

WIRE - ground

2шт.

21

L101026

RESISTOR

- 47 ohm, 2 watt

1шт.

22

223-126

SLEEVE

SHRINK TUBING - resistor

3шт.

23

L57998

ELECTRICAL WIRE

WIRE - jumper

1шт.

24

L72299

CAPACITOR

- 2000 mfd, 50 volt

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

L70807

BRACKET

- relay

1шт.

27

L112201

RESISTOR

- 50 ohm

1шт.

28

L100226

ELECTRICAL WIRE

WIRE -, Serial Range: socket-socket

1шт.

29

L100227

ELECTRICAL WIRE

WIRE - ground

1шт.

30

S235009

ELECTRICAL WIRE

WIRE -, Serial Range: resistor-socket

2шт.

31

L112202

DIODE

- socket assembly

1шт.

32

L113460

RELAY,24V

- steering

2шт.

33

L79560

BUZZER

LAMP AND BUZZER - auxiliary steering

1шт.

34

L118017

HARNESS

- front, see Figures 4-92 and 4-96

1шт.

35

L115067

HARNESS

WIRE - ground

1шт.

36

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, 3-way

1шт.

37

L301249

ELECTRICAL WIRE

WIRE - jumper

1шт.

38

L113437

SWITCH

- flow

1шт.

39

L301250

HARNESS

- flow switch

1шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
