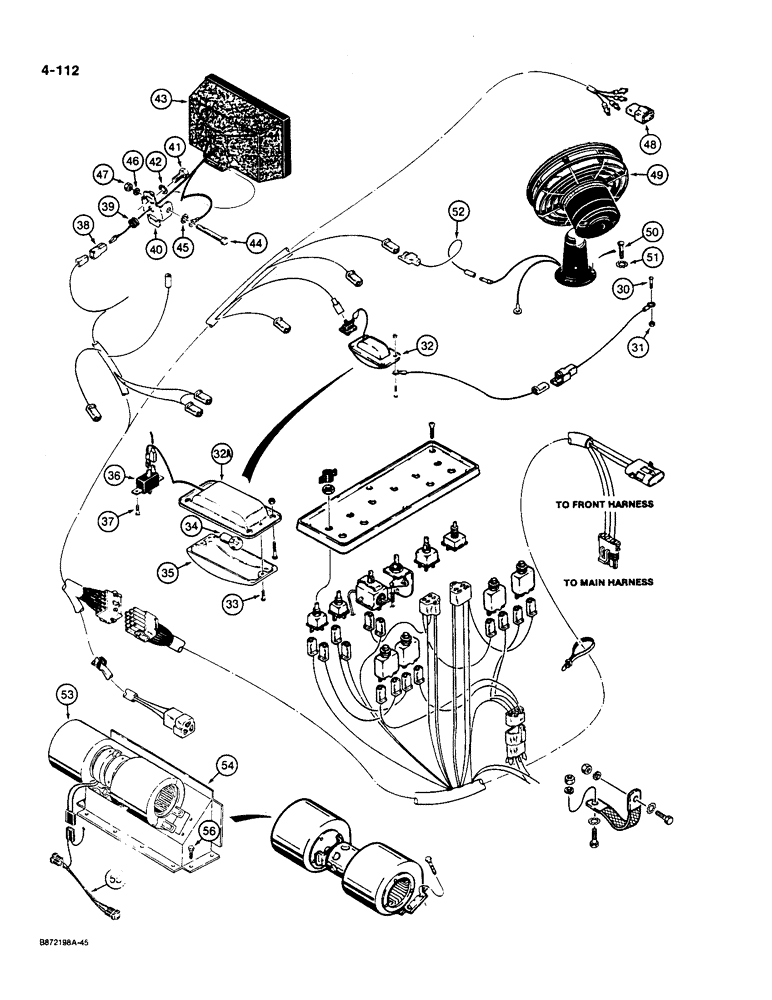

Запчасти Case W36 (4-112) - OPERATORS COMPARTMENT, WIRING AND ELECTRICAL ACCESSORIES (04) - ELECTRICAL SYSTEMS

30

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

1шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

32

D71519

LAMP

ASSEMBLY - dome, Includes: Ref. 32A - 35

1шт.

32a

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

33

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- No. 8 - 32 NC x 1/4"

2шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

34

D71459

LAMP

BULB - 24V, dome, No. 1591

1шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

35

D71458

LAMP

LENS - dome lamp

1шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

36

D75876

IGNITION SWITCH

SWITCH - dome lamp

1шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

37

179-158

SCREW,Cross Oval Hd, #6 - 32 x 3/8"

MACHINE SCREW - oval Phillips head, No. 6 - 32 NC x 3/8", plated

2шт.

Included in N13648 headliner assembly shown on figure 9-358.

1шт.

38

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

39

L13766

GROMMET

- wire, used on models with cab only

2шт.

40

L113415

BRACKET

- flood lamp

2шт.

41

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

42

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

4шт.

43

L113375

LIGHT ASSY.

FLOOD LAMP - see parts list figure 4-118

2шт.

44

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4", plated

2шт.

45

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

47

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

48

S107089

CONNECTOR, ELEC

CONNECTOR - wire

1шт.

49

REF

INSTRUCTION

FAN - defroster, see parts list figure 4-132

1шт.

50

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

3шт.

51

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

3шт.

52

L123962

ELECTRICAL WIRE

WIRE - defroster to cab harness

1шт.

L36322

PACKAGE

KIT - replacement, cab blower, includes instruction sheet, Includes: Ref. 53 - 56

1шт.

53

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab, not available as a complete assembly, lorder component parts listed on Figure 4-135A

1шт.

54

L126996

AIR TUBE

PLENUM - blower

1шт.

55

L126997

CABLE

- jumper

1шт.

56

187-1513

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex head, self-tapping, 1/4" - 20 NC x 5/8"

12шт.
