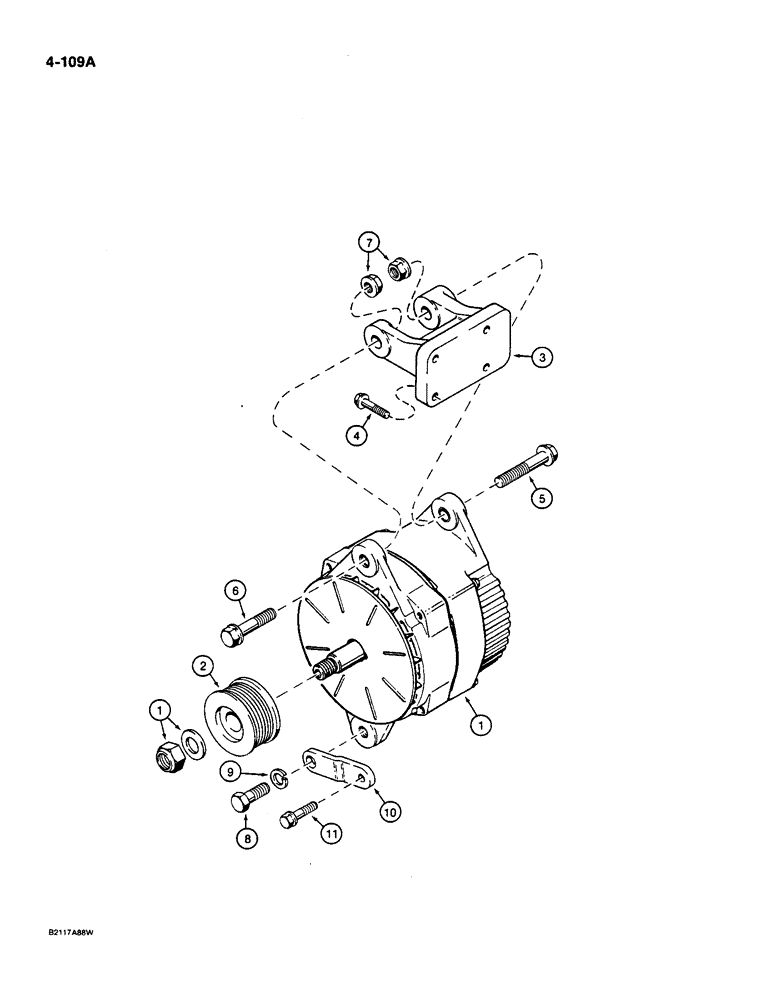

Запчасти Case W36 (4-109A) - 65 AMPERE ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

L114250

ALTERNATOR ASSEMBLY - engine, 65 ampere, see parts list Figure 4-83A

1шт.

2

J902099

PULLEY

- drive, alternator

1шт.

3

J903808

BRACKET - mount, alternator

1шт.

Ref. 3 - Replaced by E156401

1шт.

4

J900621

BOLT

- special, bracket, upper

4шт.

Ref. 4 - Use 614-8025

1шт.

5

J902115

FLANGE BOLT,Hex, M12 x 65mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 65 mm

1шт.

6

J902116

FLANGE BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 50 mm

1шт.

7

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

J913345

STRAP - adjusting, alternator

1шт.

11

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm (8.8), plated

1шт.
