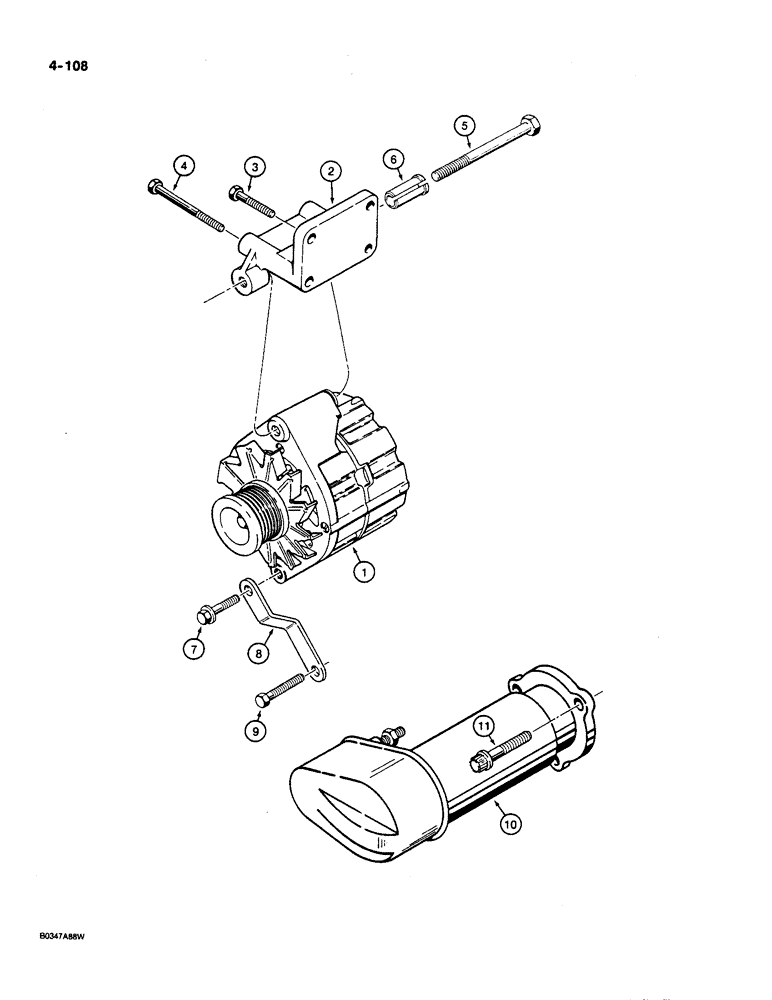

Запчасти Case W36 (4-108) - 45 AMPERE ALTERNATOR AND STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

E156163

ALTERNATOR

ASSEMBLY - engine, 45 ampere, see parts list Figure 4-82

1шт.

2

E156401

SUPPORT

BRACKET - mount, alternator

1шт.

3

E156541

BOLT

- special, bracket, upper

2шт.

4

E156539

BOLT

- special, bracket, lower

2шт.

5

E156575

SCREW

BOLT - special, Serial Range: alternator-bracket

1шт.

6

J902469

SPACER

- bracket

1шт.

7

E156558

BOLT

- special, support

1шт.

8

E156403

COVER PLATE

STRAP - adjusting, alternator

1шт.

9

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm (8.8), plated

1шт.

10

E156159

STARTING MOTOR

STARTER ASSEMBLY - engine, see parts list Figures 4-84 and 4-86

1шт.

10

75264239R

REMAN-STARTER,24V

CASE WHEEL LOADER (S/N 17754000 & AFTER), STARTER ASSEMBLY, Reman for New PN E156159

1шт.

10

75264239C

CORE-STARTER,24V

Return Number

1шт.

11

E156578

BOLT

- special, Serial Range: starter-engine

3шт.
