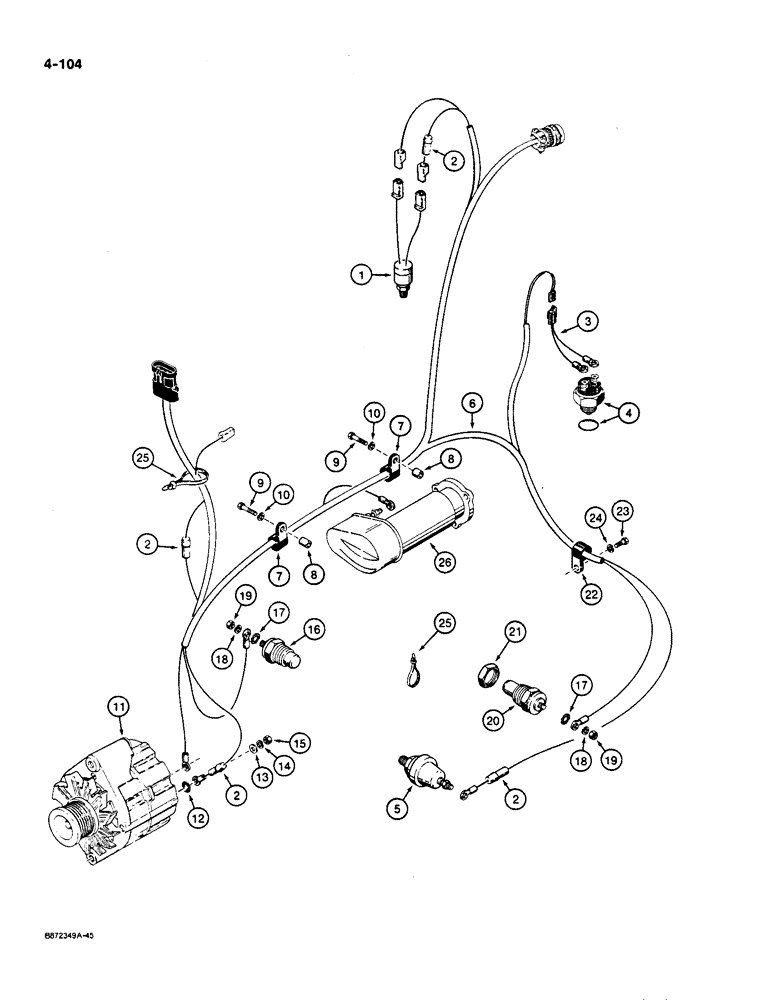

Запчасти Case W36 (4-104) - ENGINE AND TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

L113841

SWITCH

- clutch pressure

1шт.

2

L73576

RESISTOR

- 40 ohm

4шт.

3

L115041

CABLE

WIRE - switch, neutral start

1шт.

4

D78316

SWITCH

- neutral start, includes O-ring

1шт.

5

E68563

SENSOR

SWITCH - engine oil pressure

1шт.

6

L126022

HARNESS

- engine and tranmission

1шт.

7

49852

PTO SHAFT

- harness

2шт.

8

D72284

SLEEVE

SPACER - clamp, harness

2шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated

2шт.

10

892-1108

LOCK WASHER,M8

plated M8

2шт.

11

E156163

ALTERNATOR

- 45 ampere, see Figure 4-82 for parts list and Figure 4-108 for mounting parts

1шт.

11a

L114250

ALTERNATOR - 65 ampere, not shown, see Figure 4-83A for parts list and Figure 4-109A for mounting parts

1шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

13

195-516

WASHER,#12

- flat, No. 12, plated

1шт.

14

892-1106

LOCK WASHER,M6

plated M6

1шт.

15

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

16

L56217

UNIT

SENDER - engine water pressure

1шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

19

129-37

NUT,#10-32

2шт.

20

L56217

UNIT

SENDER - temperature, converter

1шт.

21

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT

1шт.

22

49845

CLAMP

-, Serial Range: harness-transmission

1шт.

23

826-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex head, 10 mm - 1.5 x 55 mm (10.9)

1шт.

24

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

E156159

STARTING MOTOR

STARTER - CDC No. 3352839, parts list Figures 4-84 and 4-86

1шт.

26

75264239R

REMAN-STARTER,24V

CASE WHEEL LOADER (S/N 17754000 & AFTER), Reman for New PN E156159

1шт.

26

75264239C

CORE-STARTER,24V

Return Number

1шт.
