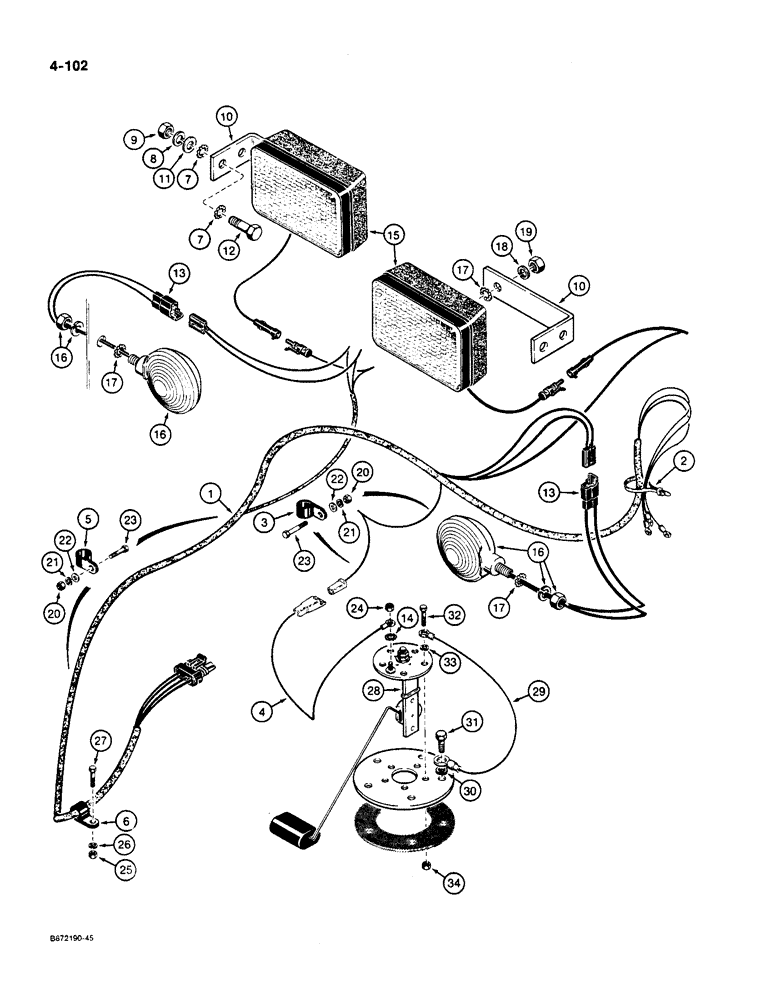

Запчасти Case W36 (4-102) - REAR CAB HARNESS - REAR LAMPS (04) - ELECTRICAL SYSTEMS

1

L115051

HARNESS

- cab, rear

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness wire to radiator

2шт.

4

L114503

HARNESS

WIRE - jumper

1шт.

5

49838

CLAMP

-, Serial Range: harness-radiator

2шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

- harness to rear chassis

1шт.

7

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

L114210

BRACKET

- lamp mounting

2шт.

11

495-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

223-173

CONNECTOR, ELEC

CONNECTOR - female

2шт.

14

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

15

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, parts list Figure 4-118

2шт.

16

L114617

LAMP

ASSEMBLY - stop and tail, parts list Figure 4-120

2шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

129-37

NUT,#10-32

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

28

L118306

TRANSMITTER

SENDER - fuel tank, see Figure 3-68 for related items

1шт.

29

L114608

HARNESS

WIRE - ground, fuel tank

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

31

L108414

BOLT

- special

1шт.

32

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8", plated

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.
