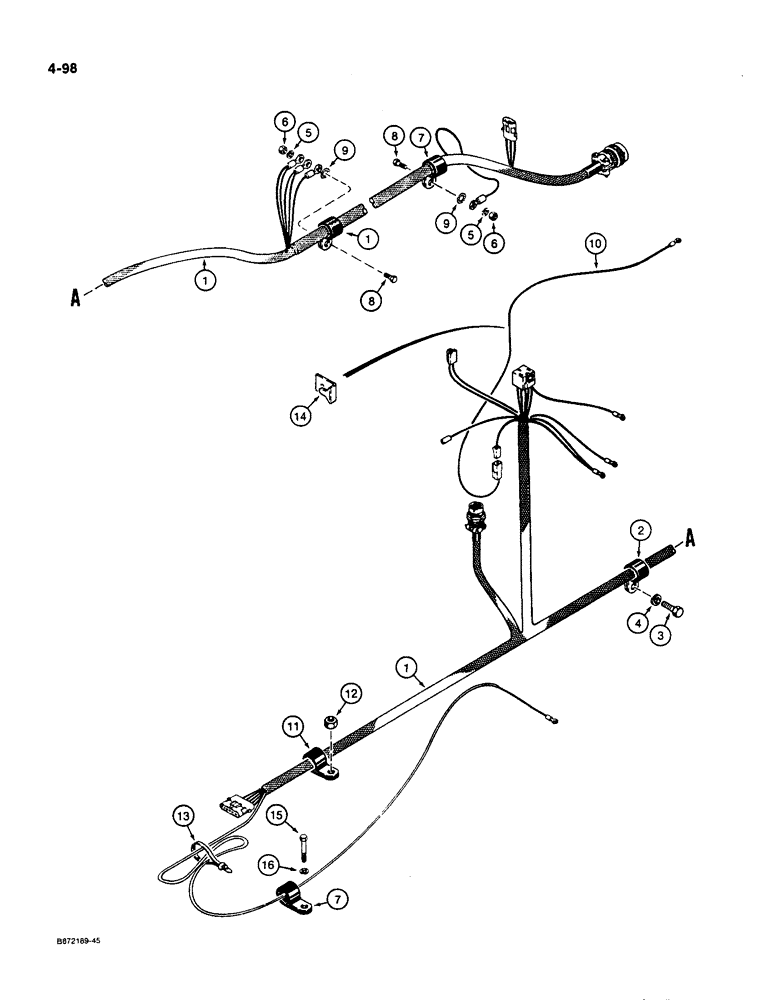

Запчасти Case W36 (4-098) - MAIN HARNESS (04) - ELECTRICAL SYSTEMS

1

L126021

HARNESS

- main, includes one clamp

1шт.

2

49799

GASKET

CLAMP - harness

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

R14668

CLAMP

- harness

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

10

L114286

HARNESS

WIRE - jumper

1шт.

11

NLS

NO LONGER SERVICED

- harness

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

E66349

STAPLE

CLAMP - wire

3шт.

15

826-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex head, 10 mm - 1.5 x 55 mm (10.9)

1шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.
