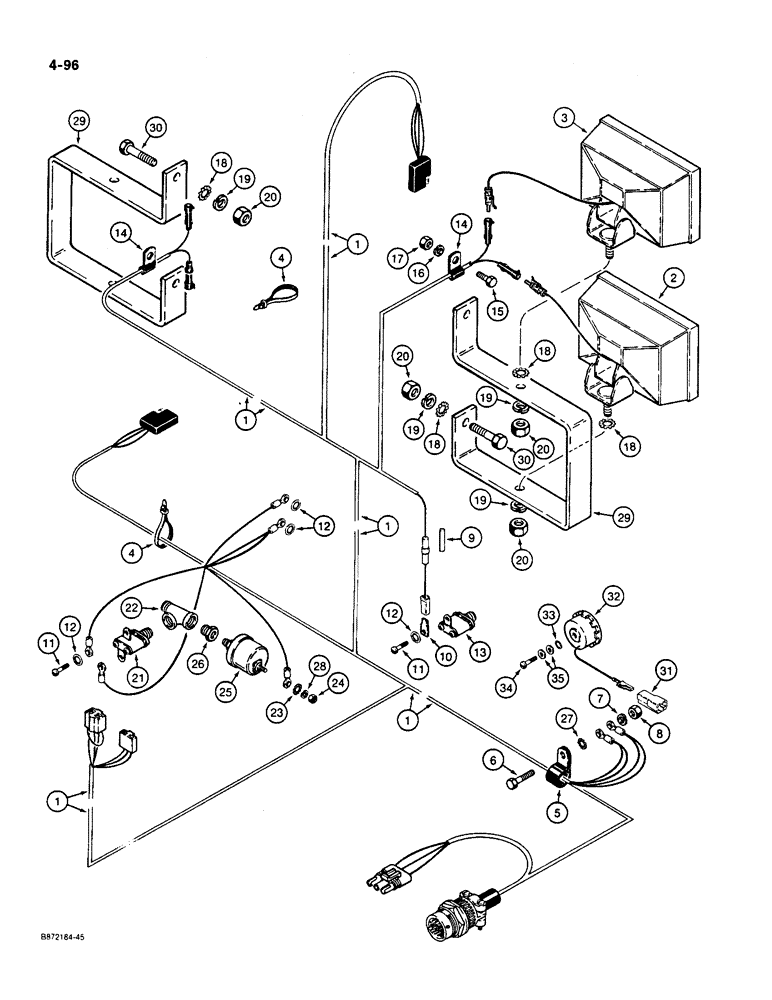

Запчасти Case W36 (4-096) - FRONT HARNESS - LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L118017

HARNESS

- front

1шт.

2

L113373

LIGHT ASSY.

LAMP - flood, see Figure 4-118 for correct assembly and components

2шт.

3

L113374

LIGHT

LAMP - drive, see Figure 4-118 for correct assembly and components

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

49855

CLAMP

- wire

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

9

L73576

RESISTOR

- 40 ohm

1шт.

10

L59682

TERMINAL CONNECTOR

TERMINAL - parking brake light switch

1шт.

11

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/2"

3шт.

12

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

5шт.

13

L70507

SWITCH

- low air pressure

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- wire

2шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

8шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

21

L48480

SWITCH

- air pressure

1шт.

22

221-1691

TEE,Street, 1/4" NPT

- Street, 1/4" NPT

1шт.

23

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

24

129-37

NUT,#10-32

1шт.

25

L109945

TRANSMITTER

SENDER - air pressure

1шт.

26

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

27

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

28

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

29

L114954

BRACKET

- lamp mounting

2шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - female, low air pressure alarm

1шт.

32

L115252

BUZZER

ALARM - warning, air pressure

1шт.

33

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, pan head slotted, No. 8 - 32 NC x 3/8"

1шт.

35

195-510

WASHER,#8

- flat, No. 8, plated

2шт.
