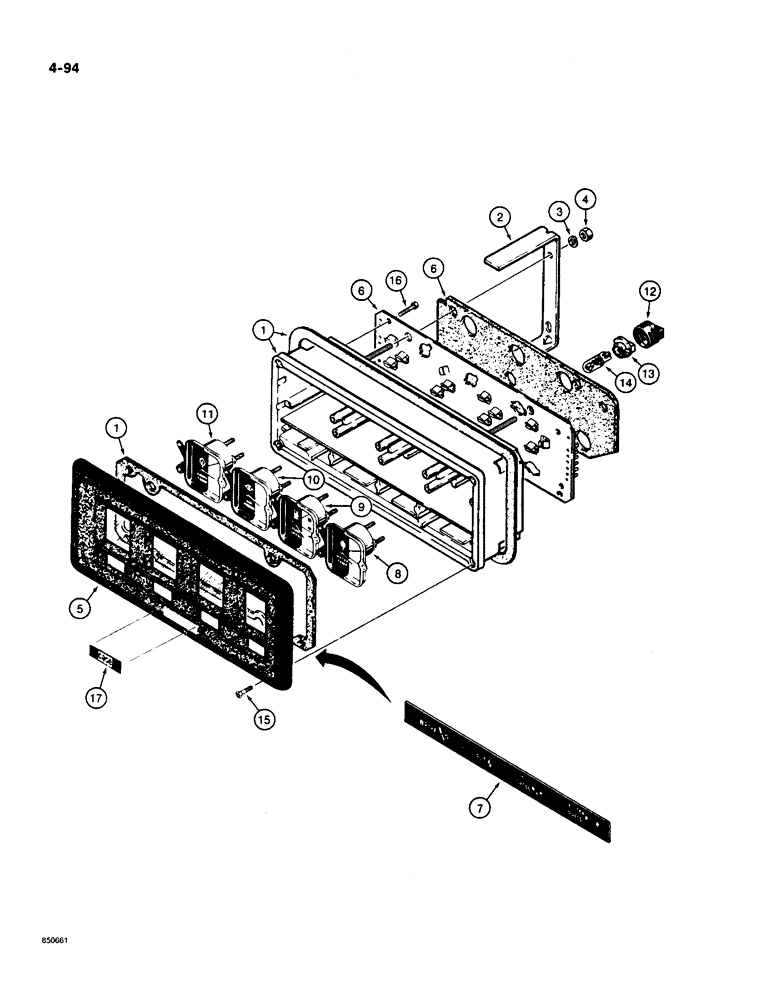

Запчасти Case W36 (4-094) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

L55650

CLUSTER

- instrument panel, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

CASE AND GASKET - cluster mounting

1шт.

2

L35954

STRAP

- case mounting

2шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

4

129-37

NUT,#10-32

4шт.

5

L35948

PANEL

- instrument, right-hand outer

1шт.

6

L35950

BOARD, PRINTED CIRCU

CIRCUIT BOARD - wiring and gauges, two piece

1шт.

7

L35953

PANEL

IDENTIFICATION PANEL - brake, alternator, engine oil pressure and clutch pressure warning lamps

1шт.

8

L35946

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

9

L35943

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

10

L35944

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

11

L35945

ELECTRICAL GAUGE

GAUGE - converter, oil temperature

1шт.

12

L35947

BOOT

- lamp socket

7шт.

13

L35949

SOCKET/RECEPTACLE

SOCKET - instrument lamp

7шт.

14

W10478

LAMP

BULB - No. 194

7шт.

15

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - hex socket head, No. 6 - 32 NC x 3/4", stainless steel, black coated

4шт.

16

187-976

SELF-TAP SCREW,#6 x 3/8"

SCREW - self-tapping, No. 6 - 32 NC x 3/8"

13шт.

17

L57685

DECAL

- Case

1шт.
