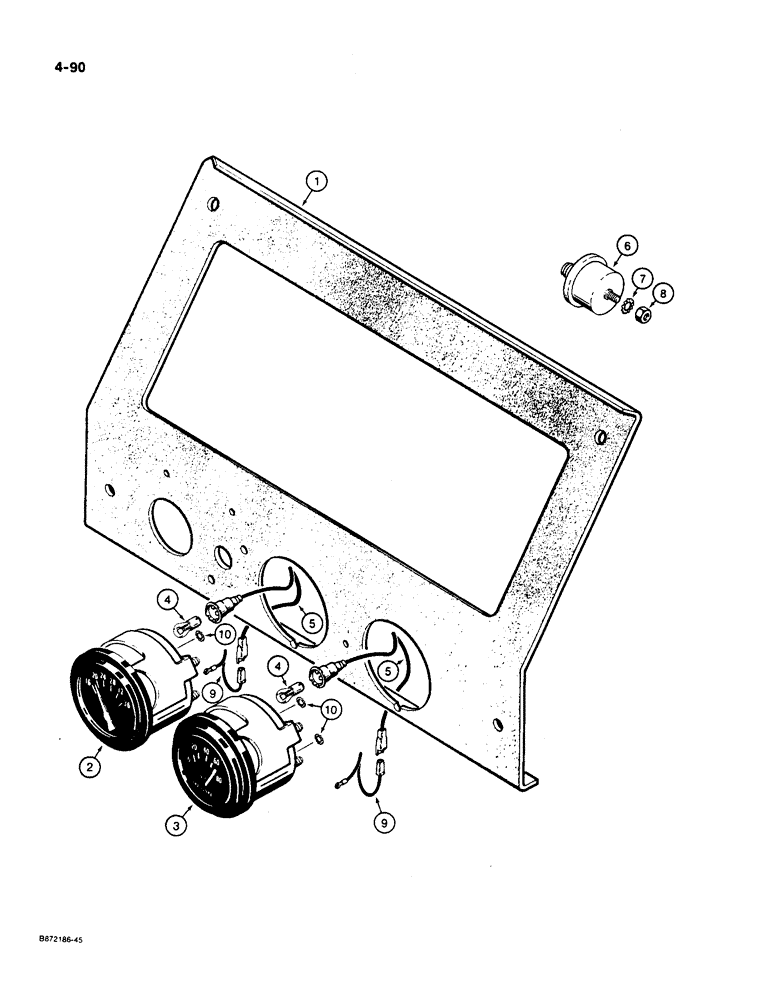

Запчасти Case W36 (4-090) - INSTRUMENT PANELS WITH OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

1

L118532

PANEL

INSTRUMENT PANEL - right-hand, optional gauges, for standard instrument panels see Figure 4-89

1шт.

2

L111876

GAUGE

- voltmeter

1шт.

3

L111875

DIPSTICK

GAUGE - oil pressure

1шт.

4

B50213

BULB

- gauge, No. 53

2шт.

5

L114518

SOCKET

- lamp, with wire

2шт.

6

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

7

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

8

129-37

NUT,#10-32

1шт.

9

L114727

HARNESS

WIRE - jumper

2шт.

10

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

3шт.
