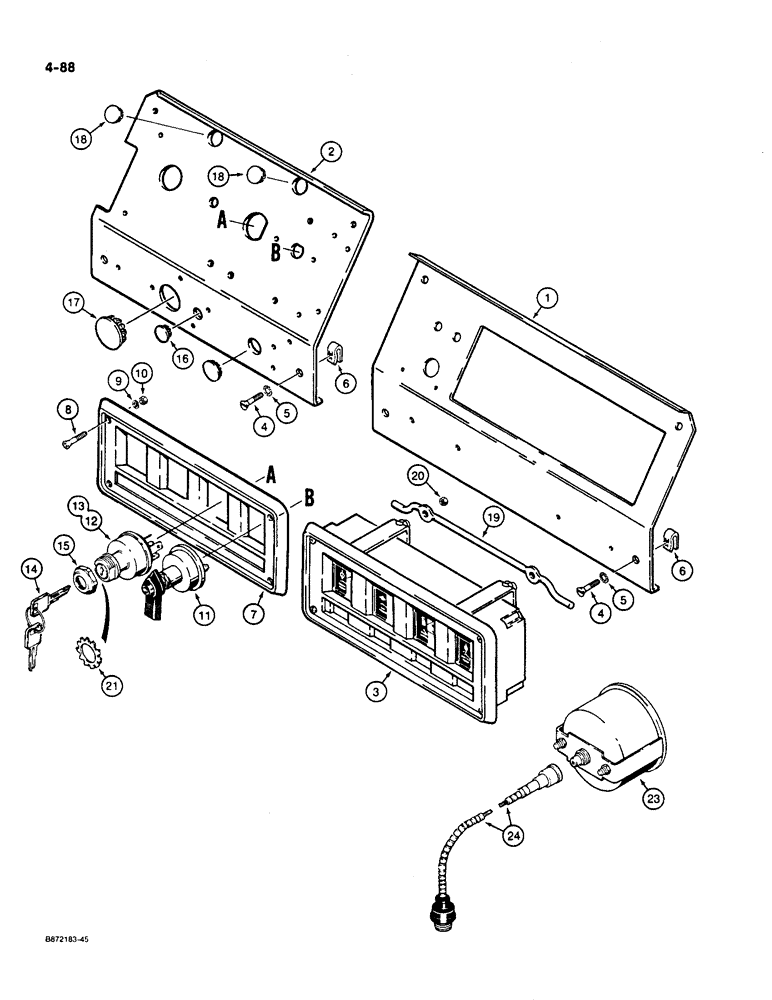

Запчасти Case W36 (4-088) - INSTRUMENT PANELS AND TACHOMETER (04) - ELECTRICAL SYSTEMS

1

L118464

PANEL

- instrument, right-hand

1шт.

2

L105776

PANEL

- instrument, left-hand

1шт.

3

L55650

CLUSTER

- instrument, parts list Figure 4-94

1шт.

4

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- truss head, 1/4" - 20 NC x 3/4"

8шт.

5

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

8шт.

6

131-630

SPRING NUT,Tinn, U, 1/4"-20

- U-type

8шт.

7

L55774

PANEL

COVER - instrument, left-hand, cluster

1шт.

8

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - flat head, hex socket, No. 6 - 32 NC x 3/4", stainless

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55654

SWITCH

- lamp

1шт.

12

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - without keys

1шт.

14

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

15

A77314

NUT

- hex

1шт.

16

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

17

353-422

PLUG,Dome, 1.250" hole, Nylon

If used Dome, 1.250" hole, Nylon

1шт.

18

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8", if used

2шт.

19

L100085

ROD

- cluster retaining

1шт.

20

129-37

NUT,#10-32

2шт.

21

193-118

LOCK WASHER,Int Tooth, 1"

WASHER - external tooth lock, 1", plated

1шт.

22

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16", if used

1шт.

23

L116255

TACHOMETER

GAUGE - tachometer

1шт.

24

E156198

CABLE

- tachometer

1шт.
