Запчасти Case W36 (4-084) - STARTER (04) - ELECTRICAL SYSTEMS

E156159

STARTING MOTOR

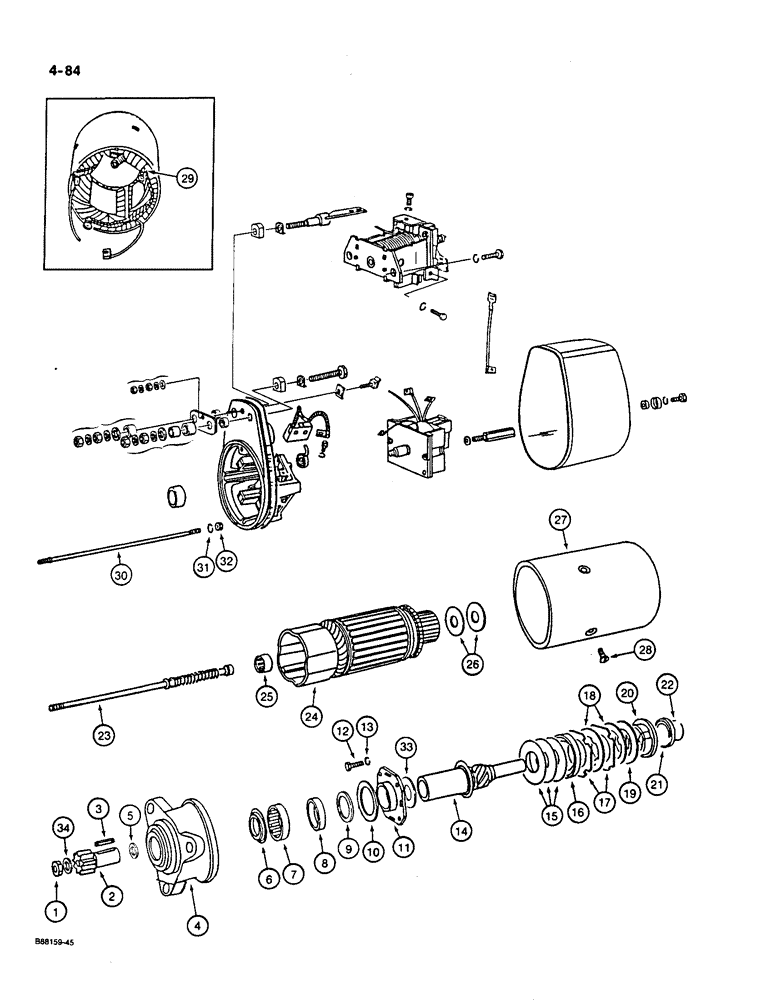

STARTER ASSEMBLY - 24 volt, Includes: Ref. 1 - 34 and 35 - 62 on Figure 4-86

1шт.

75264239R

REMAN-STARTER,24V

CASE WHEEL LOADER (S/N 17754000 & AFTER), STARTER ASSEMBLY , Reman for New PN E156159

1шт.

75264239C

CORE-STARTER,24V

Return Number

1шт.

1

E156210

NUT

- engagement rod

1шт.

2

E156748

PINION

GEAR - pinion

1шт.

3

NSS

NOT SOLD SEPARAT

KEY - lock, pinion gear

1шт.

Part of repair kit P/N E67190.

1шт.

E156749

HOUSING

COVER AND BEARING ASSEMBLY - drive end, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

5

E156744

WASHER

- cover

1шт.

6

E156743

RUBBER SEAL

RETAINER - bearing

1шт.

7

E67210

BEARING HOUSING

BEARING - shaft

1шт.

8

E67208

BUSHING

- shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

Part of repair kit P/N E67190.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, bushing

1шт.

Part of repair kit P/N E67190.

1шт.

11

E67205

COVER

CAP - end, armature

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - end cap

4шт.

Part of repair kit P/N E67190.

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

Part of repair kit P/N E67190.

1шт.

E67204

CLUTCH ASSEMBLY

- starter, Includes: Ref. 14 - 22

1шт.

14

E67203

ROD

SHAFT - drive, multi-disc clutch

1шт.

E67186

SET

KIT - ring, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - spring, clutch

1шт.

16

NSS

NOT SOLD SEPARAT

BACKUP RING - washer

1шт.

17

NSS

NOT SOLD SEPARAT

DISC - clutch, square type

1шт.

18

NSS

NOT SOLD SEPARAT

DISC - clutch, round type

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - set

1шт.

20

NSS

NOT SOLD SEPARAT

RING - clutch

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - clutch ring

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINING RING - multi-disc clutch

1шт.

23

E67202

ROD

- engagement

1шт.

E67207

ARMATURE

ASSEMBLY - starter, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

25

E67206

NEEDLE BEARING

BEARING - needle, drive end

1шт.

26

NSS

NOT SOLD SEPARAT

SET - shim

1шт.

Part of repair kit P/N E67190.

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - coil and brushes

1шт.

28

E67213

SCREW

-, Serial Range: coil-housing

8шт.

29

E67214

COIL

- field

1шт.

30

E67196

PIN

STUD - 245 mm, drive end cover to brush holder

3шт.

30

E67195

PIN

STUD - 196 mm, drive end cover to brush holder

1шт.

31

E67164

LOCK WASHER

- lock

6шт.

32

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated, use with stud (Ref. 30)

4шт.

33

E156742

SEAL

- drive shaft

1шт.

34

75207431

NUT

WASHER - flat, pinion gear

1шт.

E67190

REPAIR KIT

KIT - repair, Includes: Ref. 3, 9, 10, 12, 13 and 26 on this figure and Ref. 38 - 42, 45 - 51, 53 and 55 - 58 on Figure 4-086

1шт.
