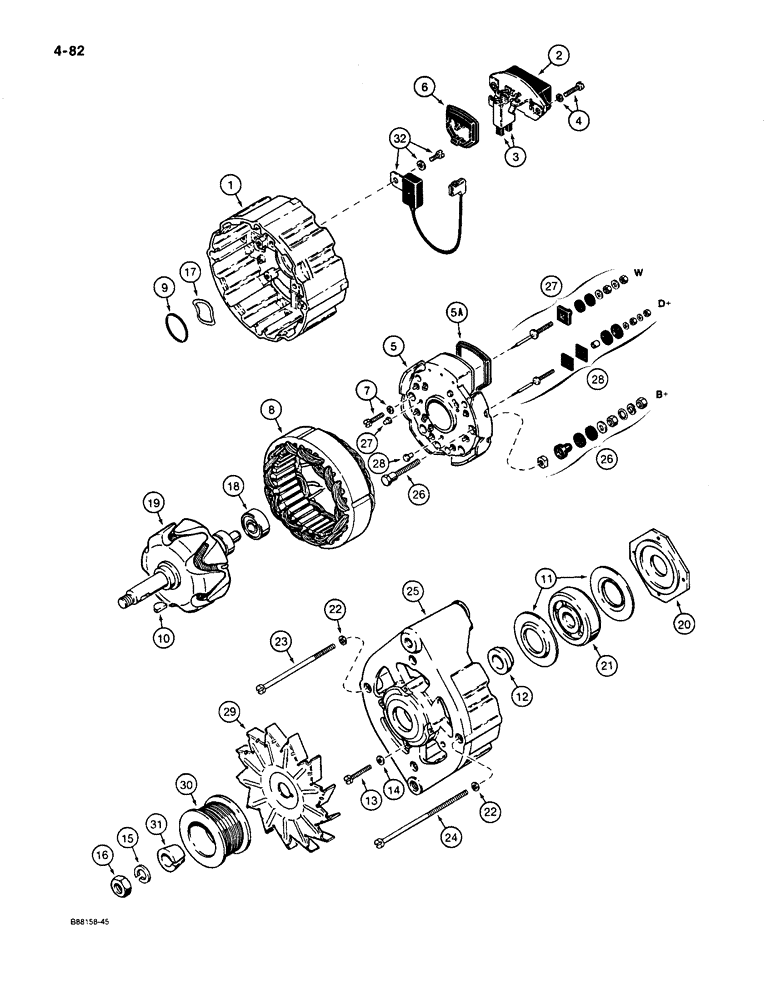

Запчасти Case W36 (4-082) - ALTERNATOR ASSEMBLY, 45 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

E156163

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, for 24 volt system, Bosch part number 90-120 080 137, Includes: Ref. 1 - 28

1шт.

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186124

CORE-ALTERNATOR

Return Number

1шт.

1

E156757

SHIELD

SPARE PART HOUSING - collector ring end

1шт.

2

E156758

REGULATOR

REGULATOR - voltage, Includes: Ref. 3

1шт.

3

E156753

SET

KIT - brush, alternator

1шт.

4

E156746

HARDWARE

SPARE PART BOLT - with washer, voltage regulator retaining

2шт.

5

E156740

RECTIFIER

SPARE PART RECTIFIER BRIDGE - alternator, includes hardware

1шт.

5a

NSS

NOT SOLD SEPARAT

SEAL - rectifier bridge

1шт.

6

E156737

GASKET

GASKET - regulator

1шт.

7

E156747

SCREW

BOLT - with washer, rectifier bridge retaining

3шт.

8

E156739

STATOR

STATOR ASSEMBLY - alternator

1шт.

E156754

SET

KIT - rotor retaining, Includes: Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal, housing

1шт.

10

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - ball bearing

2шт.

12

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

14

NSS

NOT SOLD SEPARAT

WASHER - bearing retaining plate

4шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - wave, ball bearing

1шт.

18

E156741

BEARING, BALL

SPARE PART BEARING - ball, rotor, collector ring end

1шт.

19

E156755

ROTOR ASSY.

ROTOR ASSEMBLY - alternator

1шт.

20

E68338

PLATE

SPARE PART PLATE - bearing retaining, drive end cover

1шт.

21

E68337

BEARING, BALL

SPARE PART BALL BEARING - rotor, drive end

1шт.

22

E68347

WASHER

WASHER - cover

4шт.

23

E156704

SCREW

BOLT - special, cover retaining

3шт.

24

E156738

SCREW,M5 x 122mm

SPARE PART BOLT - special, cover retaining

1шт.

25

E156156

COVER

COVER - drive end

1шт.

26

E156750

SET

KIT - repair, terminal B+

1шт.

27

E156752

SET

KIT - repair, terminal W

1шт.

28

E156751

KIT

SPARE PART KIT - repair, terminal D+

1шт.

29

221425R1

FAN

FAN - alternator, not part of E156163 alternator assembly, order separately

1шт.

A77414

KIT

KIT - alternator pulley, Includes: Ref. 30 and 31

1шт.

30

J908560

PULLEY

PULLEY - drive, order A77414 kit

1шт.

31

J908563

RETAINER

RETAINER - pulley, order A77414 kit

1шт.

32

NSS

NOT SOLD SEPARAT

CONDENSER - alternator, includes hardware

1шт.
