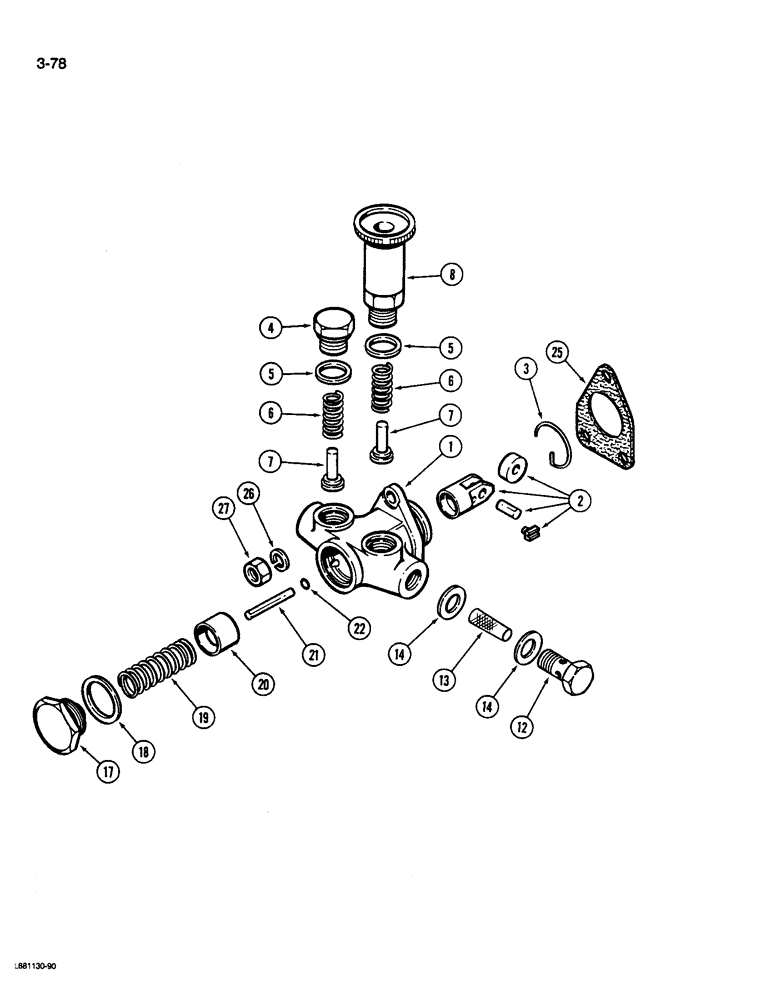

Запчасти Case W36 (3-78) - TRANSFER PUMP (03) - FUEL SYSTEM

E156400

PUMP

ASSEMBLY - transfer, Includes: Ref. 1 - 22

1шт.

1

E67242

HOUSING

- pump, Includes: Ref. 2, 7, 13, 20, 21 and 22

1шт.

2

NSS

NOT SOLD SEPARAT

TAPPET - roller

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

3

E67239

LOCKING RING

RING - retaining

1шт.

4

B41227

PLUG

- retaining

1шт.

5

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.

6

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE - pump

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

8

A43343

CARTRIDGE

PRIMER - hand pump

1шт.

12

E156802

SCREW

CONNECTOR - inlet

1шт.

13

E156803

FILTER

- screen

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - filter

2шт.

17

E67223

PLUG

- retaining

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - pump

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

21

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

Part of Repair Kit, P/N E67244

1шт.

Part of Pump Housing, P/N E67242

1шт.

25

A46322

GASKET

- sealing

1шт.

26

892-1106

LOCK WASHER,M6

3шт.

27

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

3шт.

E67244

PACKAGE, REPAIR

KIT - repair, Includes: Ref. 2, 7, 13, 20, 21 and 22

1шт.
