Запчасти Case W36 (3-76) - FUEL INJECTION NOZZLE, 6TA-830 ENGINE (03) - FUEL SYSTEM

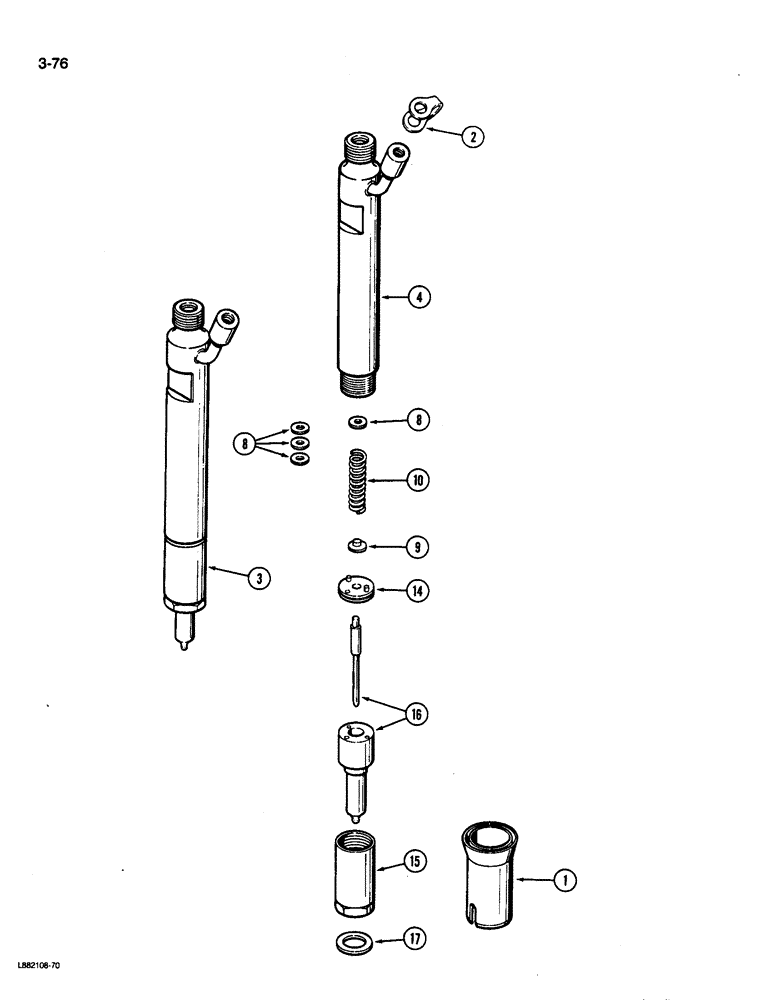

Схема запчастей Case W36 - (3-76) - FUEL INJECTION NOZZLE, 6TA-830 ENGINE (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A77629

NOZZLE INJECTION

NOZZLE KIT - injector, Includes: Ref. 1 - 16

6шт.

JR908511

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

6шт.

JC908511

CORE-FUEL INJECTOR

Return Part Number, injection pump

6шт.

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - seal, injector

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

NSS

NOT SOLD SEPARAT

INJECTOR ASSEMBLY - fuel (Order A77629), Includes: Ref. 4 - 16

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 gasket must be replaced before nozzle is installed in cylinder head.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

A48186

KIT

SHIM KIT - injector, opening pressure

1шт.

8

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

8

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

8

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle (5 in kit) 1.04mm Thk

1шт.

8

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle (5 in kit) 1.08mm Thk

1шт.

8

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle (5 in kit) 1.10mm Thk

1шт.

8

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle (5 in kit) 1.14mm Thk

1шт.

8

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle (5 in kit) 1.18mm Thk

1шт.

8

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle (5 in kit) 1.20mm Thk

1шт.

8

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle (5 in kit) 1.24mm Thk

1шт.

8

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle (5 in kit) 1.28mm Thk

1шт.

8

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle (5 in kit) 1.30mm Thk

1шт.

8

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle (5 in kit) 1.34mm Thk

1шт.

8

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle (5 in kit) 1.38mm Thk

1шт.

8

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle (5 in kit) 1.40mm Thk

1шт.

8

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle (5 in kit) 1.44mm Thk

1шт.

8

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle (5 in kit) 1.48mm Thk

1шт.

8

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle (5 in kit) 1.50mm Thk

1шт.

8

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle (5 in kit) 1.54mm Thk

1шт.

8

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle (5 in kit) 1.58mm Thk

1шт.

8

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle (5 in kit) 1.60mm Thk

1шт.

8

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle (5 in kit) 1.64mm Thk

1шт.

8

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle (5 in kit) 1.68mm Thk

1шт.

8

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle (5 in kit) 1.70mm Thk

1шт.

8

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle (5 in kit) 1.74mm Thk

1шт.

8

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle (5 in kit) 1.78mm Thk

1шт.

8

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle (5 in kit) 1.80mm Thk

1шт.

8

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle (5 in kit) 1.84mm Thk

1шт.

8

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle (5 in kit) 1.88mm Thk

1шт.

8

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle (5 in kit) 1.90mm Thk

1шт.

8

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle (5 in kit) 1.94mm Thk

1шт.

8

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle (5 in kit) 1.98mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE STOP ASSEMBLY - nozzle

1шт.

15

NSS

NOT SOLD SEPARAT

CAP NUT - nozzle end

1шт.

16

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector

1шт.

17

J906659

SEAL

GASKET - nozzle

6шт.

Whenever a nozzle is removed from the cylinder head, J906659 gasket must be replaced before nozzle is installed in cylinder head.

1шт.

Выбрано товаров: 47
