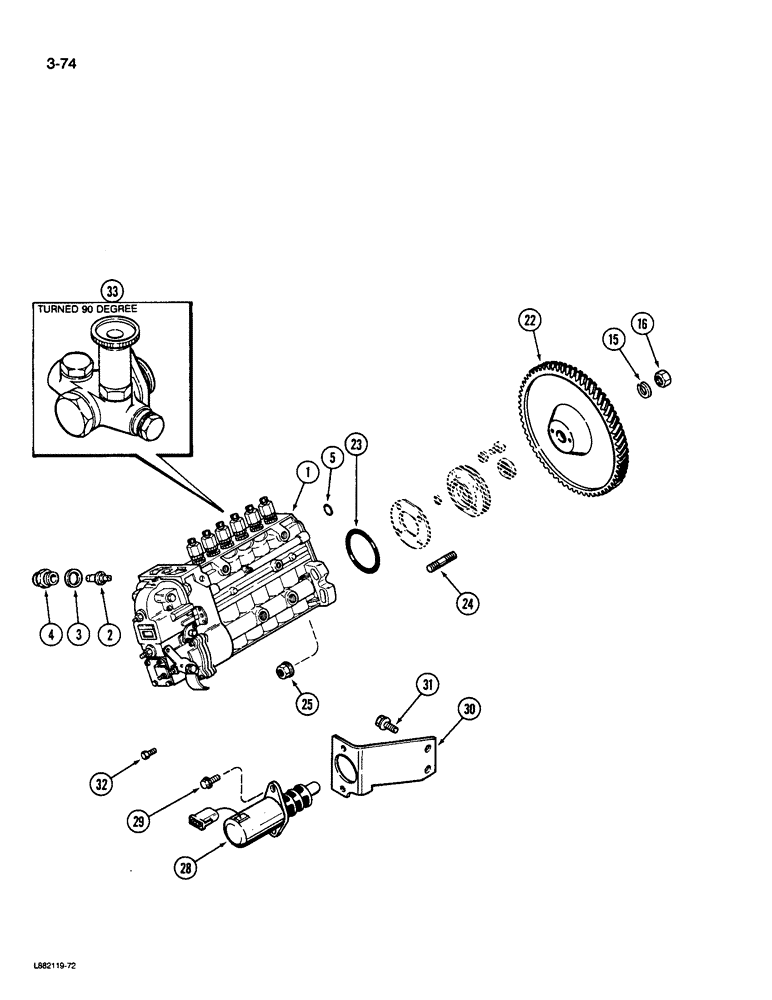

Запчасти Case W36 (3-74) - FUEL INJECTION PUMP AND DRIVE, 6TA- 830 ENGINE (03) - FUEL SYSTEM

1

J911962

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (Order JR911962), Includes: Ref. 2 - 5, 15 and 16

1шт.

JR911962

PUMP

PUMP ASSEMBLY - injection remanufactured (North America Only), Includes: Ref. 2 - 5, 15 and 16

1шт.

JC913339

CORE

RETURN NUMBER - injection pump (Use this part number to return pump core for credit)

1шт.

JR915294

REMAN-INJECTION PUMP

Remanufactured Pump Assy; For N.A. only

1шт.

JC915294

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

J912889

WASHER

WASHER - plug

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

J910501

O-RING

O-RING - port, oil

1шт.

15

J912895

LOCK WASHER

WASHER - lock

1шт.

16

J912894

NUT

NUT - hex lock

1шт.

22

J912614

GEAR

GEAR - pump, fuel

1шт.

23

J910501

O-RING

O-RING - sealing

1шт.

24

J915036

STUD

STUD - mounting, pump (Replaces J907978), 55 mm (2-5/32 in)

4шт.

25

J902662

FLANGE NUT

NUT - hex flange, M10

4шт.

28

J914093

SOLENOID

SOLENOID - shut off, fuel

1шт.

Ref. 28A - A77681 Boot

1шт.

29

J902261

BOLT,Hex Flg

BOLT - hex flange, M6 x 16 mm

2шт.

Ref. 28B - A77682 Spring

1шт.

30

J913299

BRACKET

BRACKET - mounting, solenoid

1шт.

31

J903990

BOLT,Hex Flg, M10 x 20, 10.9

BOLT - hex flange, M10 x 20 mm

2шт.

32

J910768

BOLT

BOLT - hex, ground wire

1шт.

33

REF

INSTRUCTION

PUMP ASSEMBLY - transfer, fuel (See Figure 3-78)

1шт.
