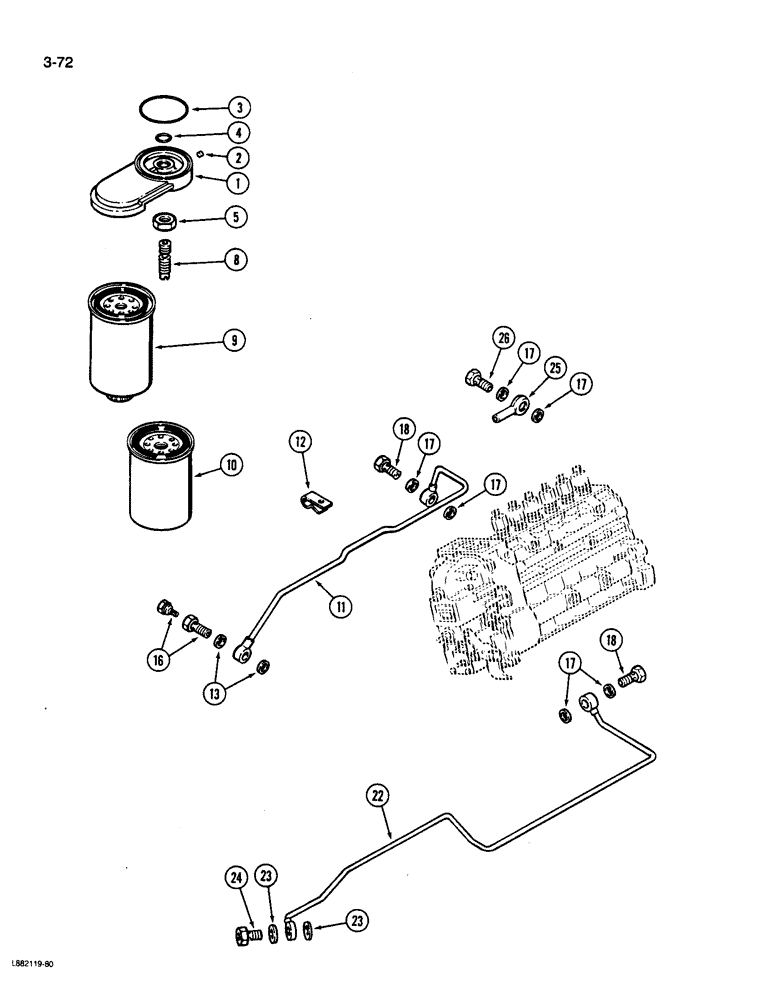

Запчасти Case W36 (3-72) - FUEL FILTER, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

J904362

HEAD

ASSEMBLY - filter, fuel, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 mm OD

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, filter head, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, adapter, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, M16

1шт.

8

J903845

BANJO BOLT

ADAPTER - filter

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.

11

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE ASSEMBLY - supply, fuel (Replaces J910514)

1шт.

12

A77436

CLIP

- tube, P style

1шт.

13

J903037

PACKING RING

WASHER - sealing

2шт.

16

J905860

BANJO BOLT

ASSEMBLY - connector

1шт.

17

J914896

PACKING RING

WASHER - sealing (Replaces J907542)

6шт.

18

J907541

BANJO BOLT

SCREW - connector, banjo

2шт.

22

E156402

TUBE

ASSEMBLY - supply

1шт.

23

J903037

PACKING RING

WASHER - sealing

2шт.

24

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

26

J913681

BANJO BOLT

VALVE - banjo restrictor

1шт.
