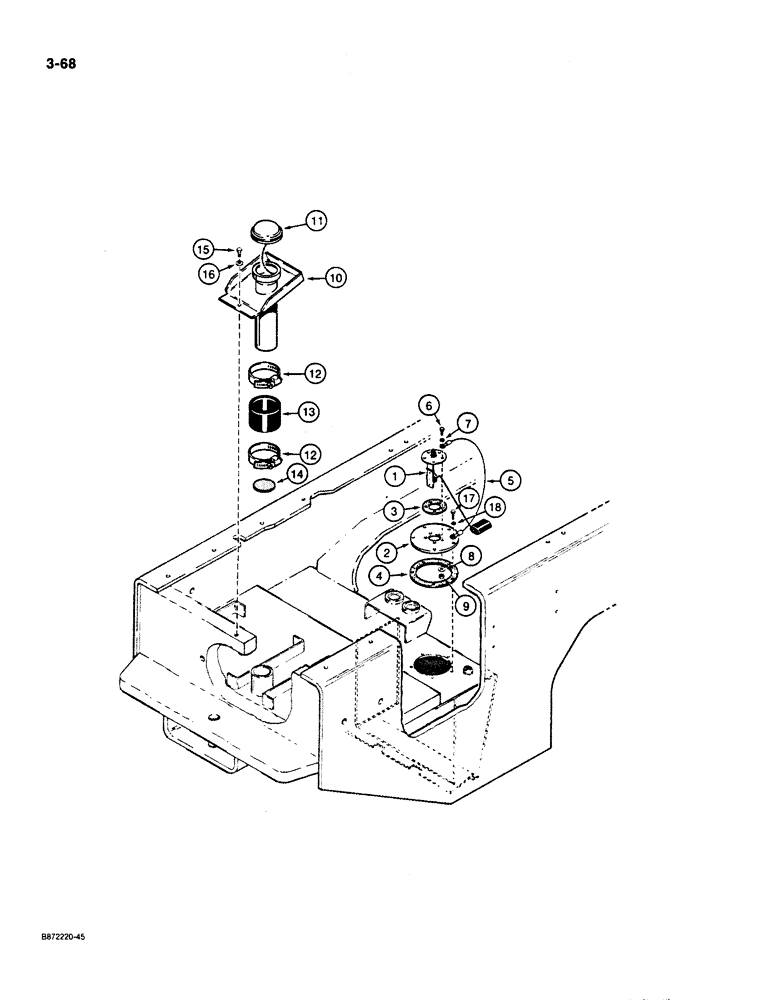

Запчасти Case W36 (3-68) - FUEL TANK AND FUEL SENDER (03) - FUEL SYSTEM

1

L118306

TRANSMITTER

SENDER - fuel tank

1шт.

2

L77441

PLATE

- fuel sender mounting

1шт.

3

A11822

GASKET

- fuel sender

1шт.

4

L79876

GASKET,4.57mm Thk

- fuel tank

1шт.

5

L114608

HARNESS

WIRE - ground, fuel tank

1шт.

6

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8", plated

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

L115306

WASHER

- special

5шт.

9

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

E156319

TUBE

PIPE ASSEMBLY - filler, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

11

E97016

CAP

- filler pipe

1шт.

12

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

13

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler Pipe

1шт.

14

L77398

STRAINER ELEMENT

SCREEN - fuel strainer

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

17

L108414

BOLT

- special

5шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.
