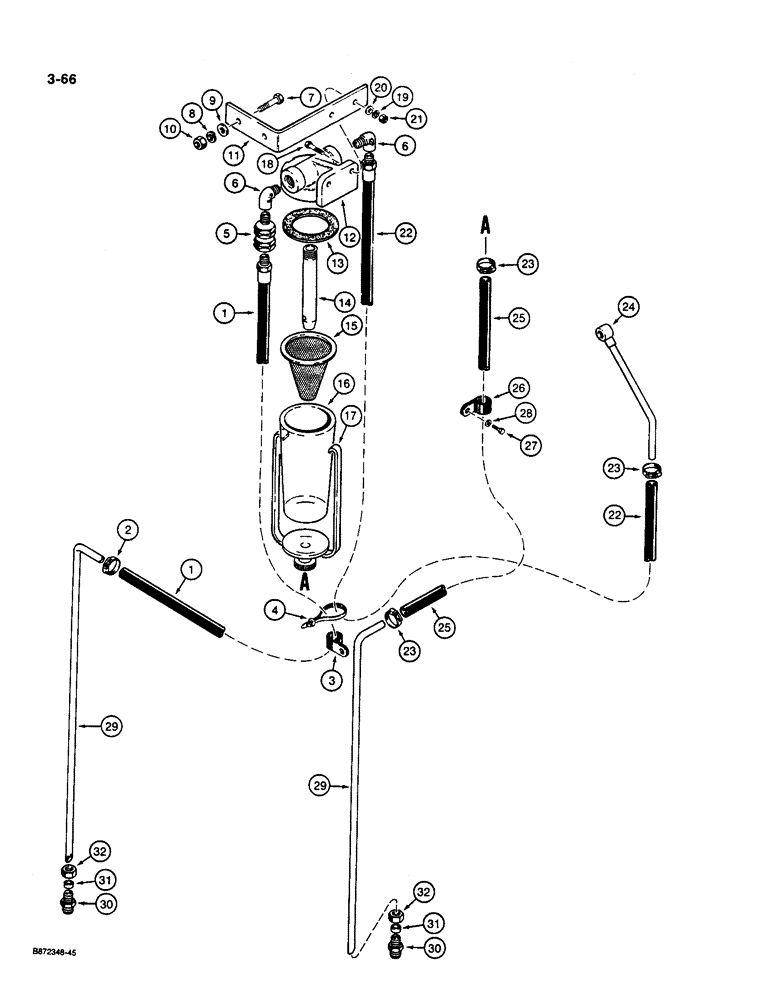

Запчасти Case W36 (3-66) - FUEL LINES (03) - FUEL SYSTEM

1

E156304

HOSE ASSY.

HOSE - 34-1/4" (870 mm) long, fuel supply

1шт.

2

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, fuel supply

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- fuel supply hose to radiator, use existing hardware

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

L17627

VALVE

- check

1шт.

6

221-412

ELBOW,90 Degree, 1/4"-27, NPT

STREET ELBOW - 90 degree, 1/4" NPT

2шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

E156302

SUPPORT

BRACKET - fuel filter

1шт.

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel, Includes: Ref. 12 - 17

1шт.

12

R21356

HOUSING

BODY - sediment bowl

1шт.

13

R21357

GASKET

- sediment bowl

1шт.

14

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

15

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

16

R21361

BOWL

- sediment

1шт.

17

R21358

CLAMP

RETAINER - sediment bowl

1шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

22

E156304

HOSE ASSY.

HOSE - 34-1/4" (870 mm) long, fuel supply

1шт.

23

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

3шт.

24

E156314

TUBE ASSY.,110 mm L

TUBE - injection pump

1шт.

25

L74379

FUEL HOSE

HOSE - 34-1/2" (876 mm) long, fuel return

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, fuel return

1шт.

27

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

29

L71206

TUBE,0.375" OD x 20, 1.8" L

- fuel tank

2шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - straight, compression fitting, Includes: Ref. 30 - 32

2шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

222-654

FERRULE,3/8" Tube, Comp

- compression fitting

1шт.

32

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - compression fitting

1шт.
