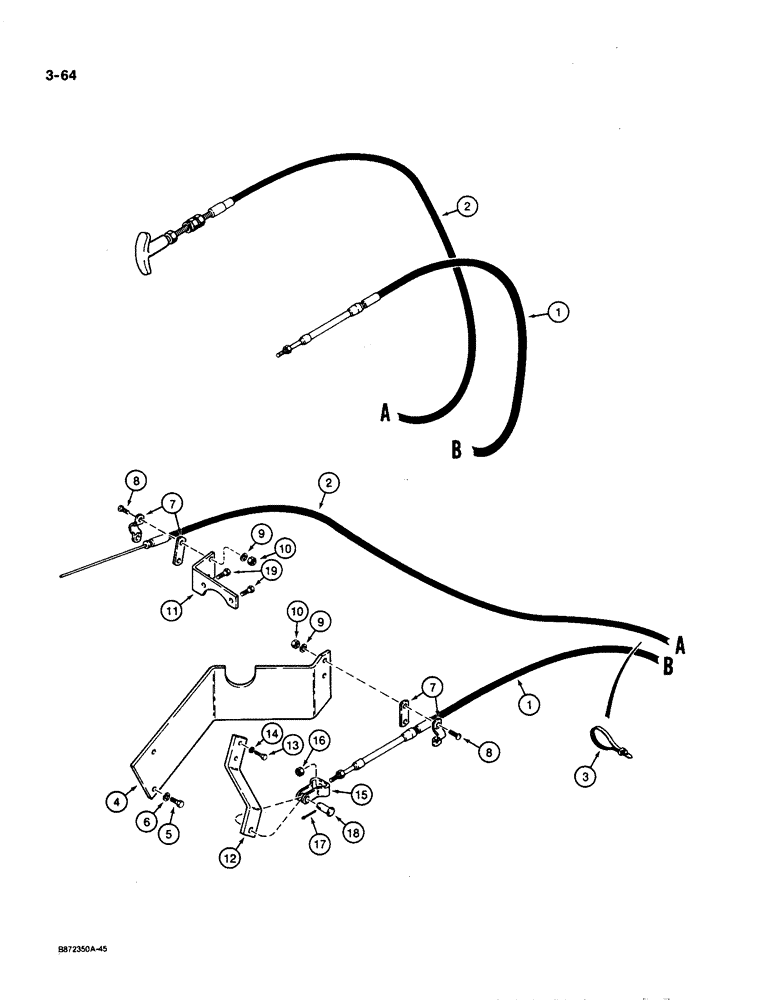

Запчасти Case W36 (3-64) - THROTTLE AND LINKAGE, AT ENGINE (03) - FUEL SYSTEM

1

L114650

CABLE

ASSEMBLY - accelerator

1шт.

2

L105315

CABLE

ASSEMBLY - fuel shutoff, parts list Figure 3-63

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

E155961

SUPPORT

BRACKET - cable, accelerator

1шт.

5

813-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

- hex head, 10 mm - 1.5 x 16 mm (8.8)

2шт.

6

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

7

L12441

CLAMP

- two piece, Serial Range: cable-bracket

2шт.

8

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/4"

4шт.

9

192-107

LOCK WASHER,#10

WASHER - light lock, No. 10

4шт.

10

129-37

NUT,#10-32

4шт.

11

E156197

BRACKET

- cable, throttle, use existing hardware on engine

1шт.

12

E155964

LEVER

- accelerator

1шт.

13

813-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 16 mm (8.8)

2шт.

14

892-1006

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

15

L74069

CLEVIS PIN

CLEVIS - accelerator cable

1шт.

16

129-37

NUT,#10-32

1шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

E61797

PIN

- clevis, accelerator cable

1шт.

19

813-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 16 mm (8.8)

2шт.
