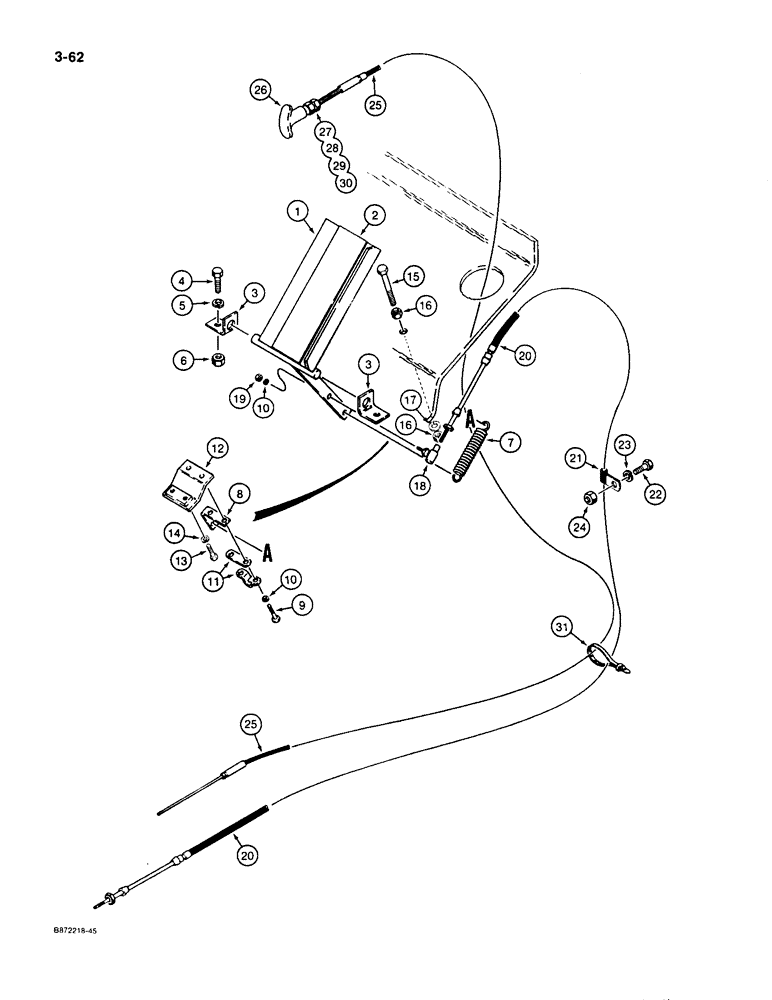

Запчасти Case W36 (3-62) - THROTTLE AND LINKAGE, OPERATORS COMPARTMENT (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
L114144
PEDAL ASSY.
PEDAL - accelerator
1шт.
2
D55216
PAD,2" x 9"
PAD - accelerator pedal
1шт.
3
L73462
BRACKET
MOUNT - accelerator pedal
2шт.
4
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
5
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
7
L78607
SPRING
- return, accelerator
1шт.
8
L114523
BRACKET
- spring return, accelerator
1шт.
9
182-147
SCREW,Sl Pan Hd, #10 - 32 x 3/4"
- machine, pan head slotted, No. 10 - 32 NF x 3/4"
2шт.
10
192-107
LOCK WASHER,#10
WASHER - light lock, No. 10
3шт.
11
L12441
CLAMP
- two piece, accelerator cable
1шт.
12
L114336
BRACKET
- cable mounting, accelerator, front
1шт.
13
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
14
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
15
113-202
BOLT,Hex, 3/8" - 16 x 4", Gr 5
Hex, 3/8"-16 x 4", G5
1шт.
16
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
17
195-104
WASHER,3/8"
- flat, , plated 3/8"
1шт.
18
L12437
BALL JOINT,#10 - 32 x 7/8"
JOINT - ball, accelerator linkage
1шт.
19
129-37
NUT,#10-32
1шт.
20
L114650
CABLE
ASSEMBLY - accelerator
1шт.
21
49845
CLAMP
- accelerator cable
1шт.
22
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
23
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
L105315
CABLE
ASSEMBLY - fuel shutoff, has grooved tube on lower end, Includes: Ref. 25 - 30
1шт.
25
NSS
NOT SOLD SEPARAT
CABLE - fuel shutoff
1шт.
26
L32679
HANDLE
- tee
1шт.
27
129-141
JAM NUT,Jam, 1/4"-20, G5
1шт.
28
L32866
SEAL
NUT - hex, special, 3/8" - 24 NF
1шт.
29
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
30
86585245
SPECIAL NUT,JAM, 5/8" - 18
- hex, jam, 3/8" - 24 NF, plated
1шт.
31
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
Выбрано товаров: 32
