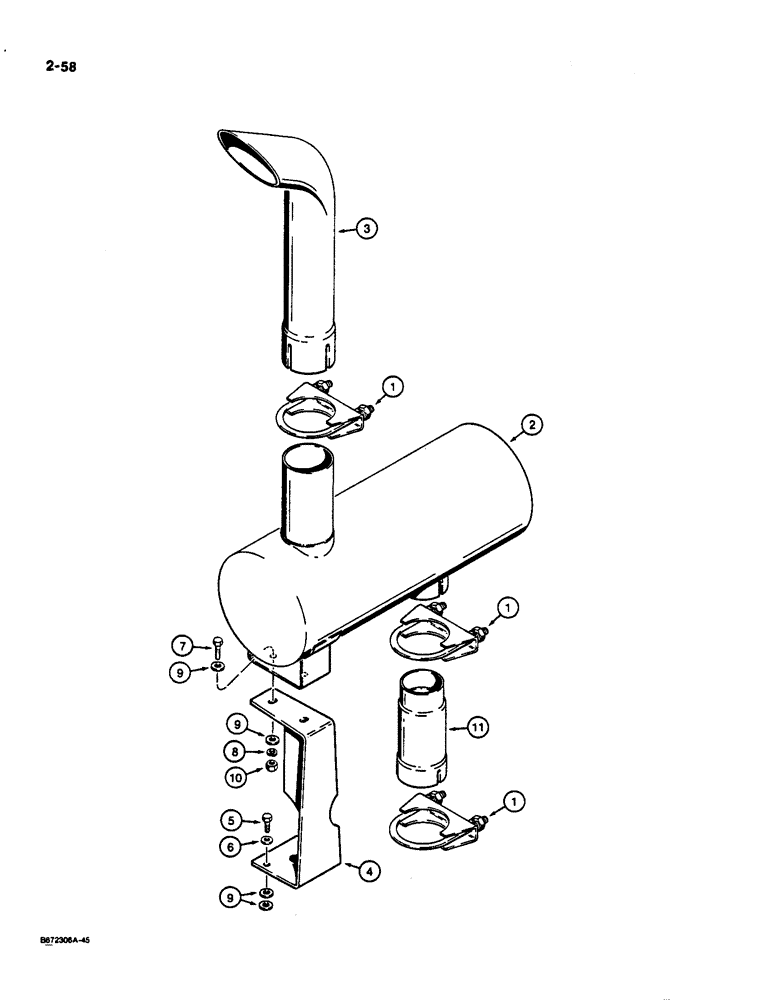

Запчасти Case W36 (2-58) - EXHAUST SYSTEM (02) - ENGINE

1

A162896

CLAMP

ASSEMBLY - muffler, includes hardware

3шт.

2

A173064

MUFFLER

- exhaust

1шт.

3

E156318

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

4

E156299

SUPPORT

BRACKET - muffler mounting

1шт.

5

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

4-8шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

E156116

TUBE,101.6 mm OD x 217 mm L

- muffler, inlet

1шт.
