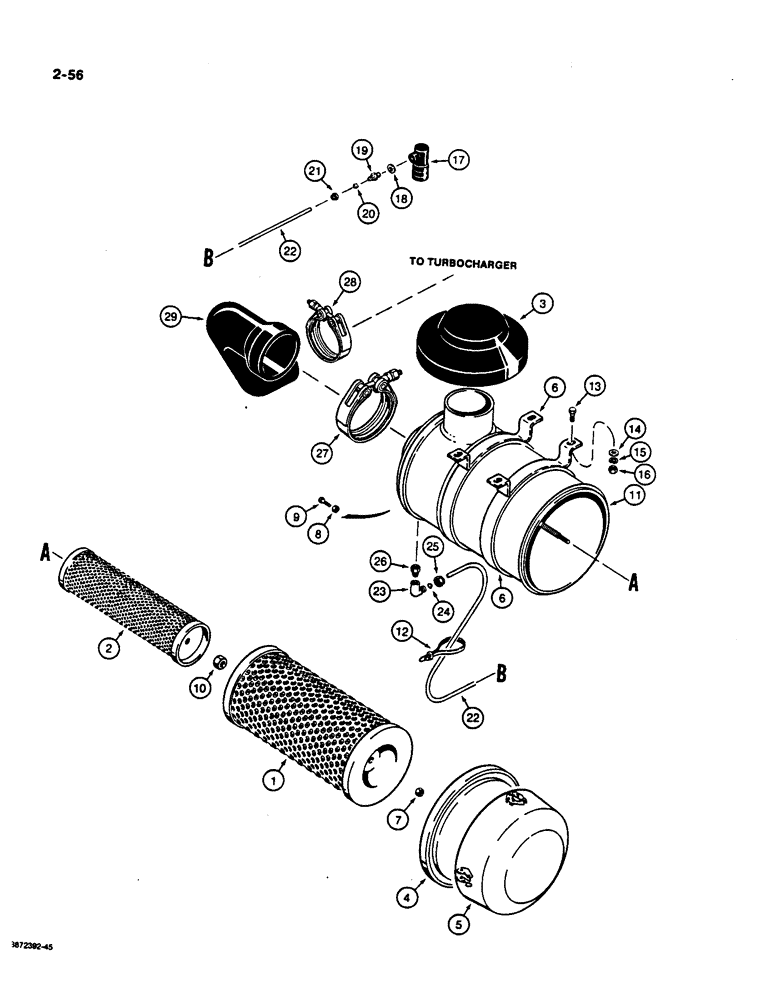

Запчасти Case W36 (2-56) - AIR CLEANER (02) - ENGINE

E155936

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 11

1шт.

1

E156251

ELEMENT

- filter, outer, primary

1шт.

2

E156252

ELEMENT

- filter, inner, secondary

1шт.

3

E156253

FILTER ASSY

CAP - weather, air cleaner

1шт.

4

E156254

COVER

- intermediate

1шт.

5

E156255

COVER

- outer

1шт.

6

E156256

CLAMP

- air cleaner

2шт.

7

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

8

E156293

NUT

- special, air cleaner

2шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated

2шт.

10

525-5109

NUT,M16 x 1.5, Cl 8

- hex, 16 mm - 1.5, fine thread, zinc plated

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

A17652

ELECTRICAL GAUGE

INDICATOR - restriction

1шт.

18

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

222-5104

FITTING,5/16"-24 x 1/8" NPT

ADAPTER - straight, compression fitting, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - tube, brass

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - compression, fitting

1шт.

22

E156317

PLASTIC-RUBBER TUBE,3.18 mm OD x 1395 mm L

TUBE - nylon, 1/8" (3 mm) OD x 55" (1395 mm) long, for service cut from D35090 tube

1шт.

222-5126

ELBOW,5/16"-24 Male x 1/8" NPTF Fem

- 90 degree, compression fitting, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE - tube, brass

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - compression, fitting

1шт.

26

E96434

ADAPTER

- straight, tube to air filter

1шт.

27

214-364

CLAMP,#150, 5.56"-5.87", T-Bolt

- hose to air cleaner, includes hardware

1шт.

28

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- hose to turbocharger, includes hardware

1шт.

29

E155935

HOSE,101.60 mm ID, 130.00 mm ID x 235, 222 mm, SAE J200, SAE 10R4

Air Cleaner 101.60 mm ID, 130.00 mm ID x 235, 222 mm, SAE J200, SAE 10R4

1шт.

D35090

TUBE

- nylon, 1/8" (3 mm) OD x 57" (1448 mm) long

1шт.
