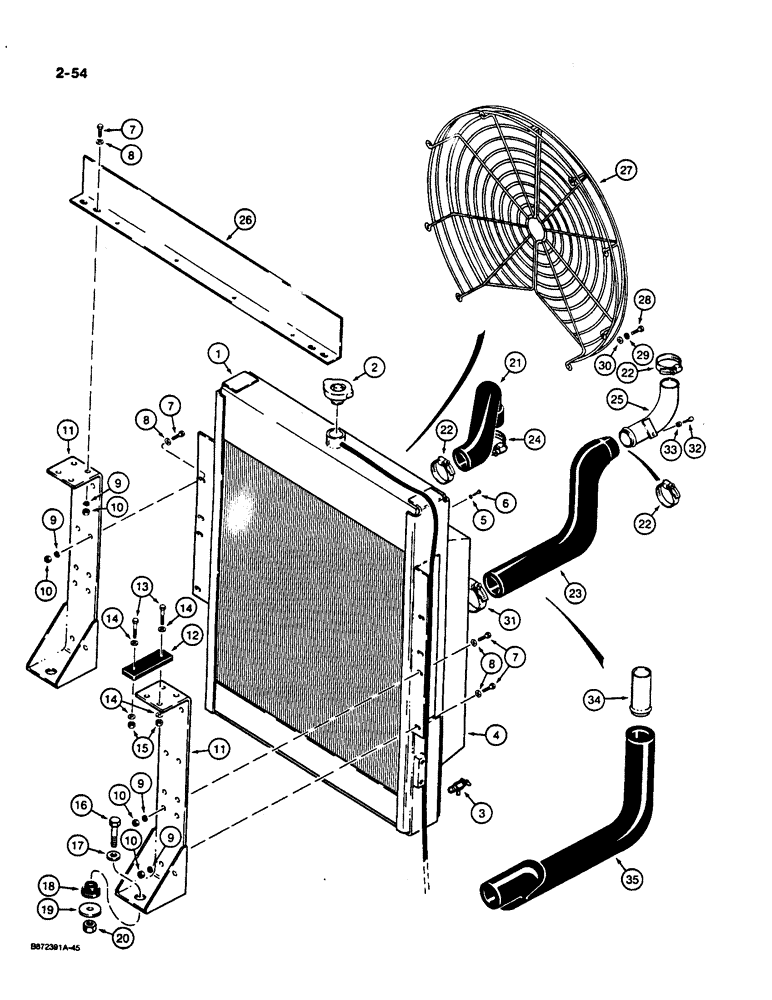

Запчасти Case W36 (2-54) - RADIATOR (02) - ENGINE

E155963

RADIATOR

ASSEMBLY - cooling, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

2

E156762

CAP

- radiator

1шт.

3

217-103

COCK, DRAIN

VALVE - drain

1шт.

4

E156817

DEFLECTOR

SHROUD - radiator

1шт.

5

892-1106

LOCK WASHER,M6

plated M6

8шт.

6

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 12 mm (8.8), plated

8шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

8

195-104

WASHER,3/8"

- flat, , plated 3/8"

10шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

11

E156777

SUPPORT

- radiator

2шт.

12

E64876

CUSHION

- radiator

2шт.

13

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

14

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

16

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

17

195-2070

WASHER,0.66" ID x 1.88" OD x 0.08" Thk

- flat, 5/8"

2шт.

18

L77573

BUSHING,16.51mm ID x 34.29mm OD x 25.4mm L

INSULATOR - rubber

2шт.

19

L77574

WASHER

- special

2шт.

20

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

21

E155954

RADIATOR HOSE,50.00 mm ID x 511.00 mm, SAE J20, TIPO R4 C

Upper 50.00 mm ID x 511.00 mm, SAE J20, TIPO R4 C

1шт.

22

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

and tube #36, 1.81/2.75 Type F Worm

3шт.

23

E156811

HOSE

- radiator, lower, use on models without air conditioning only

1шт.

24

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

1шт.

25

E155970

TUBE,90 mm L

- radiator, bypass, use on models without cir conditioning only

1шт.

26

E155125

BAFFLE

- radiator

1шт.

27

E156328

GUARD

- radiator

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

30

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

31

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, lower radiator

1шт.

32

813-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8)

1шт.

33

892-1108

LOCK WASHER,M8

plated M8

1шт.

35

E156804

HOSE

- radiator, lower, used on models with air conditioning only, see note below

1шт.

Ref. 34 and 35 are included in P/N E157070 air conditioning installation kit shown on fig. 9-370.

1шт.
