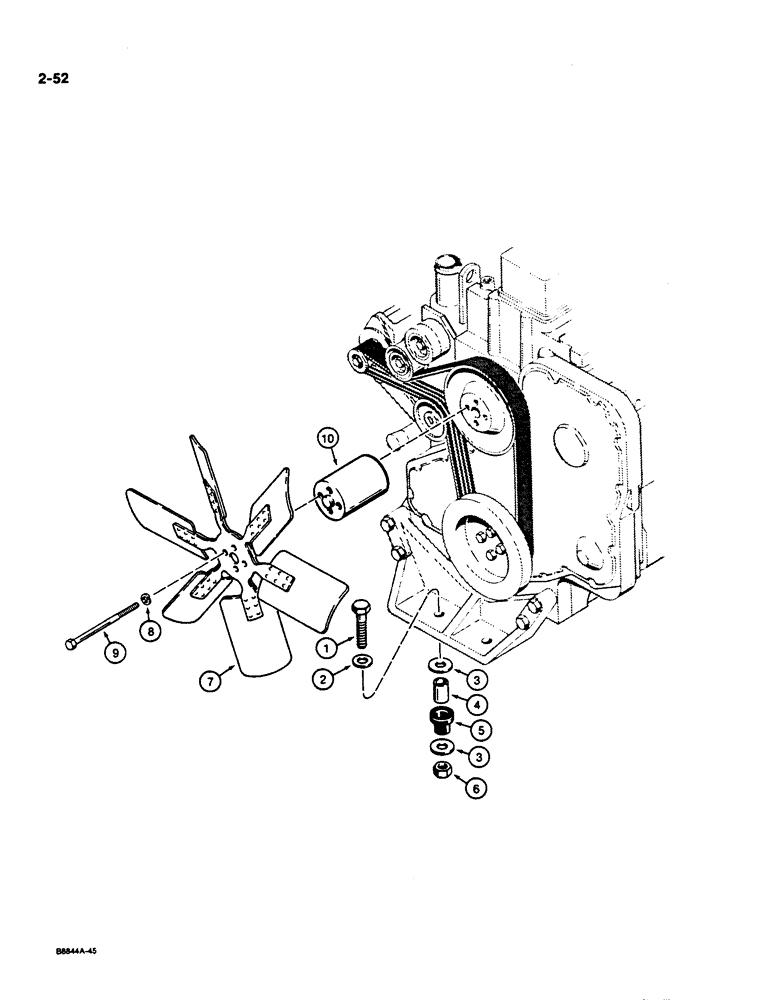

Запчасти Case W36 (2-52) - ENGINE MOUNTING AND FAN (02) - ENGINE

1

826-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex head, 12 mm - 1.75 x 90 mm (10.9)

2шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

3

E156303

WASHER

- flat, special

4шт.

4

E156136

TUBE,15.9 mm OD x 42 mm L

SPACER - bolt, engine support

2шт.

5

E156135

MOUNTING PARTS

INSULATOR - rubber, engine support

2шт.

6

E34596

SAFETY NUT

NUT - hex, mounting bolt

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

FAN - engine cooling

1шт.

8

892-1010

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

9

813-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

- hex head, 10 mm - 1.5 x 85 mm (8.8)

4шт.

10

J910130

SPACER

, Serial Range: subs-A184523

1шт.
